CANYON RIDGE® collection MODERN series

Insulated modern style garage doors with faux wood overlays.

Canyon Ridge® Modern Series faux wood garage doors are constructed from a durable, low-maintenance, composite material that won't rot, warp or crack.

Overview

CANYON RIDGE collection MODERN series garage doors provide a range of contemporary garage door styles that beautifully complement mid-century and modern homes. Choose from horizontal plank designs, aluminum inlays, and full-view glass options, all with faux-wood finishes that won’t rot, warp or crack. These low-maintenance garage doors are the perfect way to highlight natural materials and other textures on your home’s exterior.

Construction Overview

  • 4-layer construction including durable, composite, steel, and Intellicore insulation. R-Values range from 6.3 to 20.4.
  • Features our Safe-T-Bracket®, which prevents injury that could occur if the bottom bracket were removed with the door closed and under tension.
  • Heavy-duty 14-gauge steel hinges and brackets provide smooth operation.
  • 10-ball nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
  • Replaceable vinyl bottom weather seal with a rustproof aluminum retainer.
  • Learn more about CANYON RIDGE collection MODERN series construction.

Design Overview

  • CANYON RIDGE collection MODERN series garage doors feature key elements of contemporary architecture, including clean horizontal lines, sleek windows and aluminum accents.
  • For doors with windows, insulated tempered glass is standard. Insulated Frosted, Insulated Obscure and Insulated Rain glass are also available.
  • Attractive black powder coated grip handles and step plates are provided standard. Optional aluminum grip handles are available.
  • Learn more about CANYON RIDGE collection MODERN series design.

*Calculated door section R-value is in accordance with DASMA TDS-163.


Lift Master Elite Series LIFTMASTER® ELITE SERIES™
Clopay recommends the LiftMaster® Elite Series opener for these garage doors.

Door Designs

Speciality Glass Options

*Available on Plank and Full-View Design Options only.

Colors



Hardware Designs

Options include:
Product complies with 2015 IECC air infiltration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

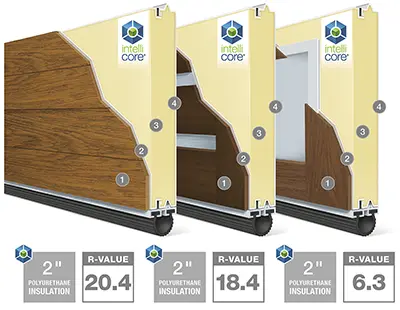

PLANK DESIGN

  • Cladding
  • Steel
  • 2" Intellicore® Polyurethane Insulation
  • Steel

Canyon Ridge Modern 20.4 R-Value Canyon Ridge Modern 5 Year Delamination Warranty Canyon Ridge Modern 5 Year Hardware Warranty

Canyon Ridge Modern Series Plank Design Construction




METAL (ALUMINUM) INLAY DESIGN

  • Cladding
  • Steel
  • 2" Intellicore® Polyurethane Insulation
  • Steel

Canyon Ridge Modern 18.4 R-Value Canyon Ridge Modern 5 Year Delamination Warranty Canyon Ridge Modern 5 Year Hardware Warranty

Canyon Ridge Modern Metal Inlay Construction




FULL-VIEW DESIGN

  • Overlay (Full View)
  • Steel
  • 2" Intellicore® Polyurethane Insulation
  • Steel

Canyon Ridge Modern - 6.3 R-Value Canyon Ridge Modern 5 Year Delamination Warranty Canyon Ridge Modern 5 Year Hardware Warranty



Canyon Ridge Modern Full-View Construction
