COMMERCIAL GLASS OVERHEAD DOORS
ALUMINUM OR STEEL FRAME

EXTREME™ SERIES

High Performance Door System

The Clopay Extreme™ Series combines high-strength durability with the ability to open at 24” per second. Powered by the robust LiftMaster opener, the Extreme™ Series- commercial doors are a great fit for emergency facilities, distribution center warehouses, car dealerships and much more.

Manufactured with heavy duty hardware, these low maintenance sectional doors boast five times the spring life of an average commercial sectional door for optimal performance.

STANDARD SPECIFICATIONS

Max Width 16'2"
Max Height 14'0"
Max Door Weight 1,000 lbs
Upward Travel 24" per second
Downward Travel 15" per second
Stiles Double end stiles (standard)
Glazing Available Tempered, insulated tempered, acrylic and polygal
Springs* 50,000 cycle standard
(Max cycles available on a single shaft line)
Track Size 2" angle mount track standard
3" track where applicable
Track Type Standard lift, high lift and full vertical
Warranty Standard paint – 5 years
Color Blast® finish – 5 years
Material and workmanship – 1 year
Hardware – 1 year

*Cycles can vary depending on door configuration.

High Performance Door System Powered by LiftMaster

opener2

The Clopay Extreme™ Series High Performance Door System boasts an opening speed of 24" per second, allowing productivity to flourish while also delivering a flawless aesthetic thanks to optional full-view windows. Tandem nylon rollers improve roller life and reduce running noise for smooth, quiet operation while safety stays top of mind with enhanced features such as 3' of light curtain protection, a cable management system and standard cable tension monitor.


For operator specifications, click here.

ALUMINUM FULL-VIEW DOORS

Model Thickness Spacing R-Value Max Width✭ Max Height✭
EX904 2-1/8" Equal width & spacing N/A 16'2" 14'0"
EX904U 2-1/8" Equal width & spacing 3.8* 16'2" 14'0"

✭Maximum Width and Height values listed are Standard sizing.
*With clear insulated glass


Insulated Steel Full-View Doors

Model Section Thickness Emboss Exterior Gauge  Section Design  Insulation R-Value Solid* R-Value w/Glass** Thermal Break Max Width✭ Max Height✭
EX3729 2" Stucco 27 Minor Ribbed Polyurethane*** 18.4 8.0 Yes 16'2" 14'0"
EX3728 2" Stucco 27 Flush Polyurethane*** 18.4 8.0 Yes 16'2" 14'0"
EX3709 1-3/8" Stucco 27  Minor Ribbed Polyurethane*** 12.9 5.9 Yes 16'2" 14'0"
EX3708 1-3/8" Stucco 27  Flush Polyurethane*** 12.9 5.9 Yes 16'2" 14'0"
EX3209 2" Stucco 24  Minor Ribbed Polystyrene 9.1 4.4 Yes 16'2" 14'0"
EX3208 2" Stucco 24  Flush Polystyrene 9.1 4.4 Yes 16'2" 14'0"
EX3159 1-3/8" Stucco 27  Minor Ribbed Polystyrene 6.5 3.4 Yes 16'2" 14'0"
EX3158 1-3/8" Stucco 27  Flush Polystyrene 6.5 3.4 Yes 16'2" 14'0"

*  R-values calculated per DASMA TDS-163 on a solid door
** R-values calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.
*** Intellicore Icon Clopay's proprietary polyurethane Intellicore insulation.
✭Maximum Width and Height values listed are Standard sizing.


Energy Series

Model Section
Thickness
Emboss Ext. Skin
Pattern
Ext. Steel
Gauge
R-Value* Thermal Break Max Width Max Height
EX3220 2" Stucco Flush 20 gauge 9.1 Thermally broken 16'2" 14'0"
EX3213 2" Woodgrain Raised panel 24 gauge 9.1 Thermally broken 16'2" 14'0"
EX3211 2" Woodgrain Flush 24 gauge 9.1 Thermally broken 16'2" 14'0"
EX3200 2" Stucco Minor Ribbed 24 gauge 9.1 Thermally broken 16'2" 14'0"
EX3150 1-3/8" Stucco Minor Ribbed 27 gauge 6.5 Thermally broken 16'2" 14'0"

*Calculated door section R-value is in accordance with DASMA TDS-163


Energy Series with Intellicore®

Model Thickness Emboss Exterior Steel Pattern Intellicore Logo R-Value* Std Max Width** Std Max Height
EX3723 2" Woodgrain 27 Gauge Raised Panel 18.4 16'2" 14'0"
EX3721 2" Woodgrain 27 Gauge Flush 18.4 16'2" 14'0"
EX3720 2" Stucco 27 Gauge Minor Ribbed
18.4 16'2"
14'0"
EX3717 1 3/4" Stucco 27 Gauge Minor Ribbed
16.2 16'2" 14'0"
EX3718 1 3/4" Stucco 27 Gauge Flush
16.2 16'2" 14'0"
EX3715 1 3/8" Stucco 27 Gauge Minor Ribbed
Intellicore Icon
12.9 16'2" 14'0"

*Calculated door section R-value is in accordance with DASMA TDS-163
**For sizes over 32'2" wide consult factory for specific configuration requirements.


OPERATOR SPECIFICATIONS

Motor Design 1.25 HP configuration serving single phase
115V/230V and 3-phase 230V configurations
3-phase 460/575V available with accessory transformer
Wall Controller Separation of low and high voltage wiring - includes
functionality of 3-button station, PLUS
setting door profile, programming limits, diagnostics
Programming Complete the following programming at floor level:
set limits; choose door profiles for speed;
set operating modes; select photo entrapment devices
Display Provides textual status indications including
- Absolute cycle count
- Service cycle count
- Diagnostics messages
- Door/operator status
Cycle Counter Re-settable cycle counter via the wall controller and/or through MyQ facility
Limit Settings Simple electronic push-button setup via the wall controller

Extreme™ Series section doors are available through Master Authorized Dealers and Authorized Dealers. To find a MAD or AD near you, use our Dealer Locator.

Master Authorized Dealer BadgeAuthorized Dealer Badge

GLAZING MATERIAL OPTIONS:

CLEAR GLASS
GRAY TINTED GLASS
BRONZE TINTED GLASS
MIRRORED GLASS*
OBSCURE GLASS
WHITE LAMINATE GLASS*
Black Laminate Glass
BLACK LAMINATE GLASS*
FROSTED GLASS OR ACRYLIC
CLEAR ACRYLIC
GRAY ACRYLIC
WHITE ACRYLIC
CLEAR POLYCARBONATE
BRONZE POLYCARBONATE
ALUMINUM PANEL COLOR MATCH

Note: Extreme™ Series must have tempered glass

*Mirrored and laminate not available in 1/2"

Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8". Low-E available on insulated glass.

COLOR OPTIONS:

CLEAR ALUMINUM (ANODIZED)
CLEAR ALUMINUM (ANODIZED)
STANDARD WHITE
STANDARD WHITE
BRONZE (PAINTED)
BRONZE (PAINTED)
CHOCOLATE (PAINTED)
CHOCOLATE (PAINTED)
BRONZE (ANODIZED)
BRONZE ANODIZED*
BLACK (ANODIZED)
BLACK (ANODIZED)*
DARK BRONZE (ANODIZED)
DARK BRONZE ANODIZED*

Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
Custom powder coat, Color Blast®, and anodized finishes available.

Premium finishing options include:

  • RAL color powder coat
  • 187 different powder coat offerings
  • Custom Colors with Color Blast ® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing




*Model EX904U is not available with powder coat finish.

STEEL INSULATED FULL-VIEW DOORS

GLASS/WINDOW OPTIONS:

Classic Plain Short
19-1/2” x 16”
PLAIN LONG
42” x 16”
CONTEMPORARY SLIM WINDOW IN SILVER
Modern Slim Windows*


*Available on models EX3728/EX3729 and EX3208/EX3209 only.

Models EX3728 and EX3729 are available with 1/8" clear tempered, 1/8" frosted tempered, 3/4" insulated tempered and 3/4" frosted insulated tempered glass. Additional glazing options include: matte, pebble, bronze tinted and impact rated window.



COLOR OPTIONS:

STANDARD WHITE
STANDARD WHITE
Glacier-White
GLACIER WHITE
Almond
ALMOND
Desert-Tan
DESERT TAN
Sandtone
SANDTONE
Bronze
BRONZE
MochaBrown
MOCHA BROWN
GRAY
GRAY
Charcoal
CHARCOAL
CHOCOLATE
CHOCOLATE
BLACK
BLACK*
TRINAR® WHITE
TRINAR® WHITE*
Lustra Black*±
Lustra Black*±
Lustra Charcoal*±
Lustra Charcoal*±
Lustra Silver*±
Lustra Silver*±
*Available on select models
± Finish will have smooth texture
Custom powder coat and Color Blast® finishes available.

Premium finishing options include:

  • Custom Colors with Color Blast ® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing



SAFETY FEATURES
SAFETY

WINDCODE®

windcode-W
WindCode® reinforcement available up to W5 design pressure (DP) 36 PSF, depending on door size, configuration and exposure. Doors tested 50% greater than DP

EX904/EX904U

Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
Model EX904U made of 2-1/8" durable commercial grade aluminum with polyurethane insulation with an R-value of 3.8 (with clear insulated glass)
Tongue-and-groove with integral joint seal for further reduction of air and water infiltration.
Smooth flat frame edge design for a more contemporary look.
Reinforcing fin included on doors wider than 14’. Doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.

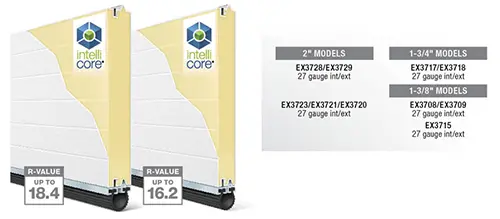

EX3700 SERIES

EX3700 Series Commercial Doors

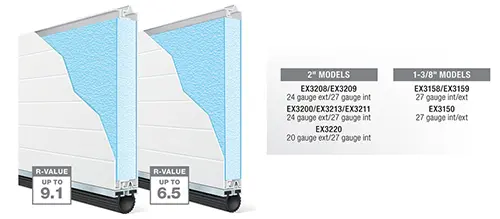

EX3200 SERIES

EX3200 Cutaway
ModelsBIMShop DrawingSpecificationLiterature(PDF)Instruction Manual(PDF)Warranty
Three Layer - Polystyrene - 1-3/8 inch
Model EX3150RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3158  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3159  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Three Layer - Polystyrene - 2 inch
Model EX3200RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3208  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3209  DOC IconPDF IconExtreme™ Series Brochure
Model EX3211  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3213  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3220RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Three Layer - Polyurethane - 1-3/8 inch
Model EX3708  DOC IconPDF IconExtreme™ Series Brochure
Model EX3709  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3715RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Three Layer - Polyurethane - 1-3/4 inch
Model EX3717RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3718RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Three Layer - Polyurethane - 2 inch
Model EX3720RFA Icon DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3721  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3723  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX3728  DOC IconPDF IconExtreme™ Series Brochure
Model EX3729  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Aluminum
Model EX904  DOC IconPDF IconRTF IconExtreme™ Series Brochure
Model EX904U  DOC IconPDF IconRTF IconExtreme™ Series Brochure


Click on appropriate icon to download
To use the Spec Wizard, click here


Track and Jamb Drawings
dwgdxfpdf
High Lift Track
Vertical Track
Jamb Details

HARDWARE FEATURES

SPRINGS

50,000 Cycle Springs

50,000 cycle spring standard

Option available for maximum cycles on a single shaft line

Springs are shot peened to improve resistance to fatigue

DOUBLE END STILES

Double End Stiles

Helps improve hinge longevity

LIFT CABLE WITH THIMBLE

Lift Cable with Thimble

Thimble helps reduce wear and extend cable life

ROLLERS

Tandem Roller

Long stem tandem rollers provide longer roller life and quiet door operation

CABLE SNUBBER

Cable Snubber

Maintains tension on lift cable to prevent it from coming off of the drum


PUSHER SPRINGS

Pusher Spring

Helps prevent cable slack. Provided with standard lift track.

WINDCODE®


windcode-W

WindCode® reinforcement available up to W5 design pressure (DP) 36 PSF, depending on door size, configuration and exposure. Doors tested 50% greater than DP.
