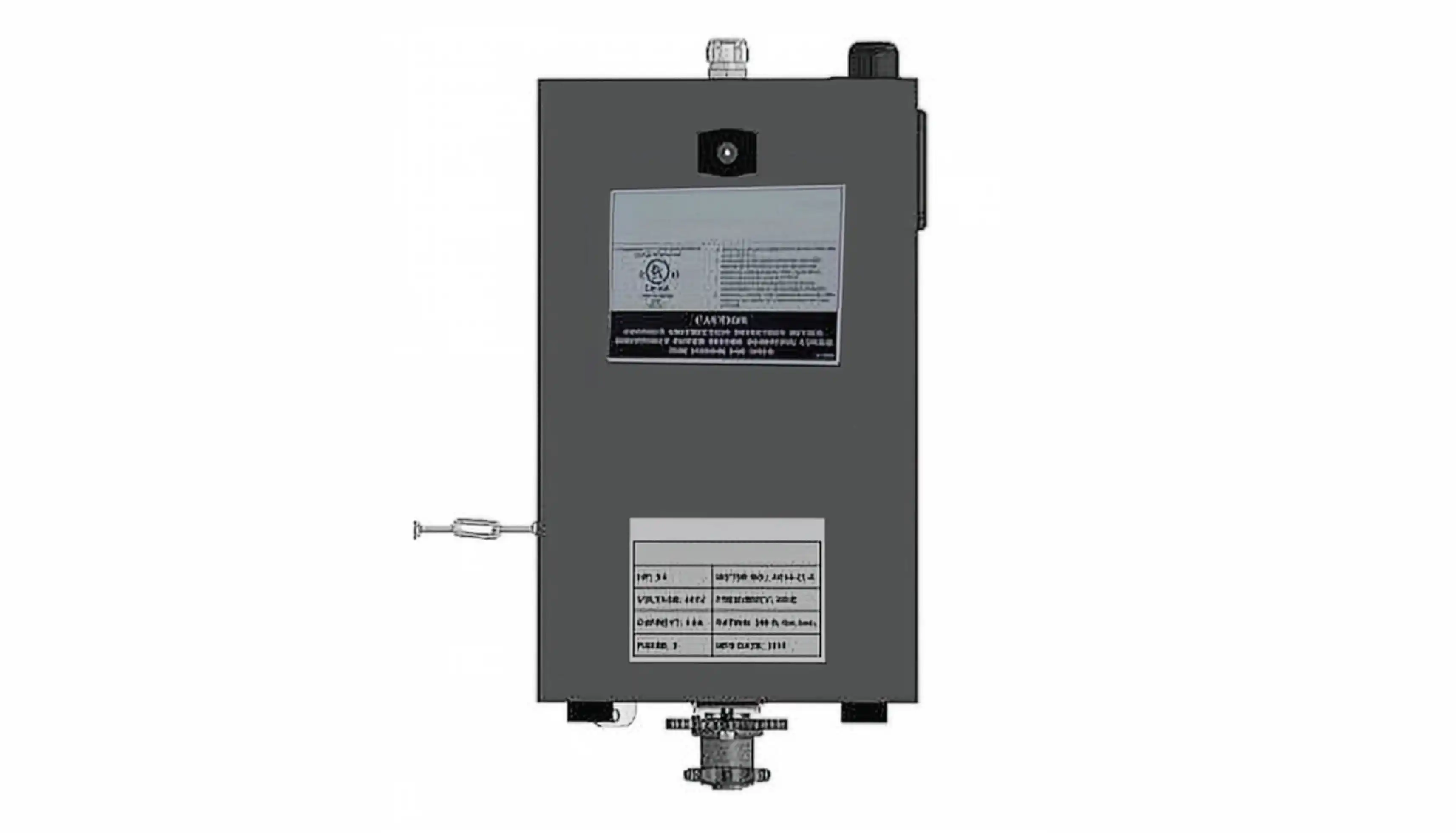

Waterproof Series SGH Operator
Our Waterproof SGH Operator comes with all of the same great features as our SGH operator plus:
- Designed to meet requirements for NEMA 4/12 or NEMA 4X applications.
- Suitable for low pressure direct spray.
- The 4X series comes with a stainless steel finish which makes it corrosion resistant.
Enter your zip code to find your local dealer
Designed for NEMA 4/12 or NEMA 4x Applications
Technical Specifications
NEMA 4/12
The NEMA 4/12 type comes with a totally enclosed non-ventilated (TENV) motor, a NEMA 4 control box and powder coated steel mounting plates.
| Model | SGHN4-50 | SGHN4-100 | SGHN4-150 |
|---|---|---|---|
| Horsepower | 1/2 HP | 1 HP | 1 1/2 HP |
| Voltage | 115V / 230V / 460V | 115V / 230V / 460V | 115V* / 230V** / 460V |
| Phase | 1/3 | 1/3 | 1/3 |
| Frequency | 60 Hz | 60 Hz | 60 Hz |
| Duty | Continuous | Continuous | Continuous |
| Drive Chain | #50 | #60 | #60 |
| Auxiliary Hand Chain | Included | Included | Included |
*Additional lead time may apply.
**Additional lead time may apply for left hand 3 phase configurations only. Please contact factory for details.
NEMA 4X
The NEMA 4X-type – SGHNX Series comes with a totally enclosed non-ventilated (TENV) motor, a NEMA 4 contol box and a stainless steel finish which makes it corrosion resistant.
| Model | SGHNX-50 | SGHNX-75 | SGHNX-100 | SGHNX-150 | SGHNX-200 |
|---|---|---|---|---|---|
| Horsepower | 1/2 HP | 3/4 HP | 1 HP | 1 1/2HP | 2 HP |
| Voltage | 115V / 230V / 460V | 115V / 230V** / 460V / 575V* | 115V / 230V** / 460V / 575V* | 115V* / 230V* / 460V* / 575V* | 230V* / 460V* / 575V* |
| Phase | 1/3 | 1/3 | 1/3 | 1/3 | 1/3 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Duty | Continuous | Continuous | Continuous | Continuous | Continuous |
| Drive Chain | #50 | #50 | #60 | #60 | #60 |
| Auxiliary Hand Chain | Included | Included | Included | Included | Included |
*Additional lead time may apply.
**Additional lead time may apply for single phase configurations and left hand configurations only. Please contact factory for details.
Note: Additional lead time may apply to left hand configurations only.
Module for secondary monitored entrapment protection device
- Suitable for low pressure direct spray
- Compact operator/mounting configuration is ideal for coiling doors - operators always fit within the coil height dimension
- Consistent mounting, appearance and wiring - across full line of operator models
- Considerably lighter weight than competitive gearhead operator models
- Auxiliary chain for emergency operation, just pull to operate
- UL listed
- Programmable Seven segment LED display
- Cycle counter
- Terminal connection for a monitored entrapment protection device
- Programmable timer to close
- Mid-open timer, open warning timer
- Onboard open and close limit signaling connections
- 24 VDC close warning output signal
- On board Open/Close/Stop buttons
- Close override if the entrapment protection device short circuits
