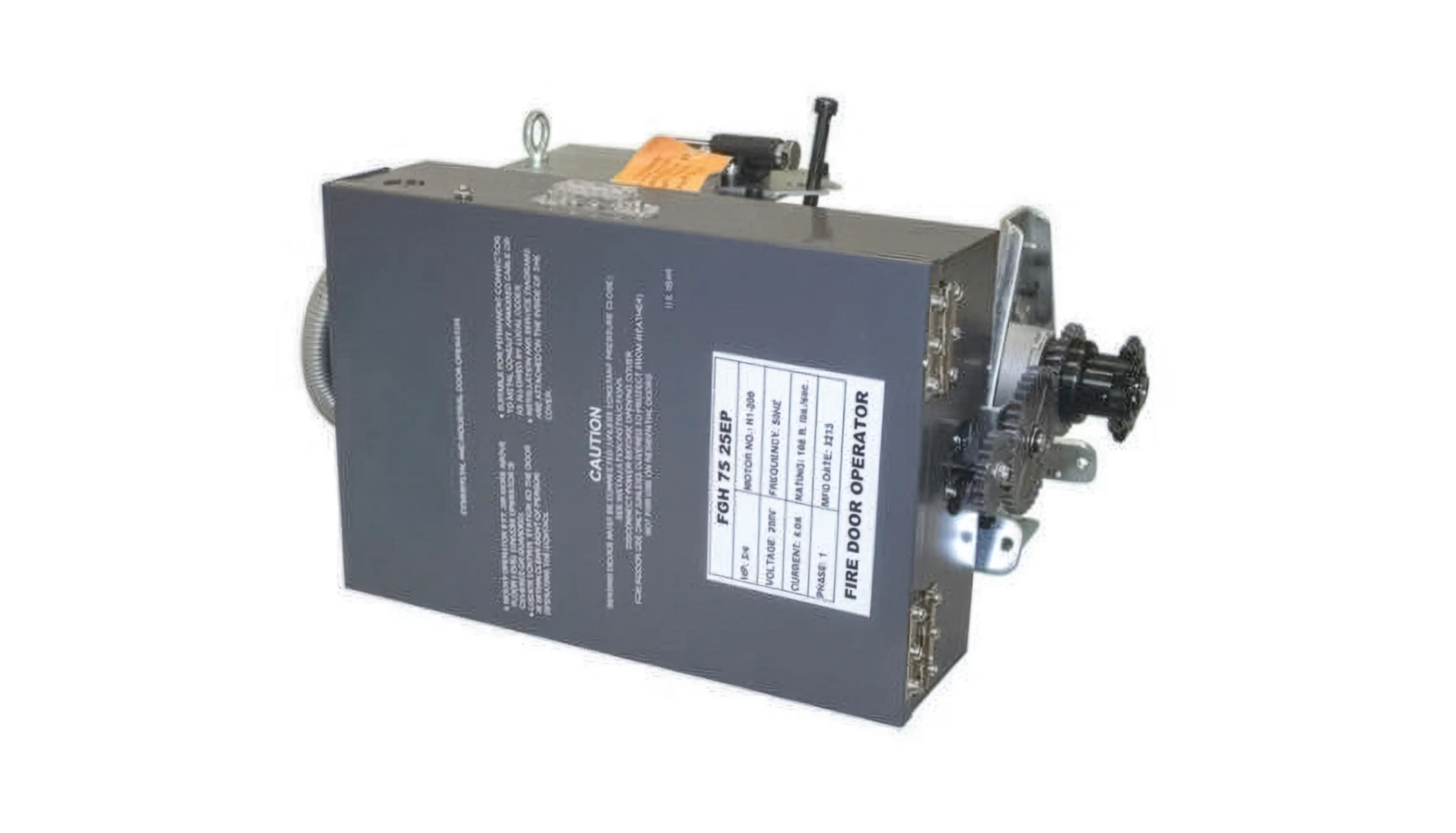

FireGard™ Motor Operator
The FireGard™ FGH Motor Operator is engineered for fire doors and insulated fire doors that cycle up to 20 times per day. In the event of a fire, the operator activates when heat or flames melt its fusible link, initiating a controlled descent of the door.
The door closes at a safe speed not exceeding 9 inches per second, creating a crucial barrier to prevent the spread of smoke and fire throughout the building. To accommodate various door sizes, the operator is available in standard horsepowers of ⅓, ½, ¾, 1, 1 ½, 2, and 3 HP. For larger doors, special order models up to 7 ½ HP can be configured.
Enter your zip code to find your local dealer
Fire Door & Insulated Fire Doors
CERD10 & CERD11
CERD20 & CERD 21 (Insulated)
Technical Specifications
Input Voltage / Phase: 115 VAC / 1, 208 VAC / 3, 230 VAC / 3, 460 VAC / 3
Duty: Up to 20 cycles/day
Horsepower: 1/3, 1/2, 3/4, 1, 1 1/2, 2, 3*
*Up to 7 1/2 HP available on larger doors
Application Requirements
An FireGard FGH Motor can operate a fire door or insulated fire door
Firefly & Firefly BB Release Device
Optional device that ties in to a building alarm system and closes a FireGard fire door upon alarm activation, rather than by melting its fusible link.
- Safe and controlled average closing speed of 6' - 12" per second
- Activates without releasing spring tension
- Fusible link activation is standard
- Will not automatically close upon power failure
- Rated for up to 20 cycles per day
- Compact design
- Easy installation
- Optional connection to the alarm system
- Auxiliary chain for emergency operation
