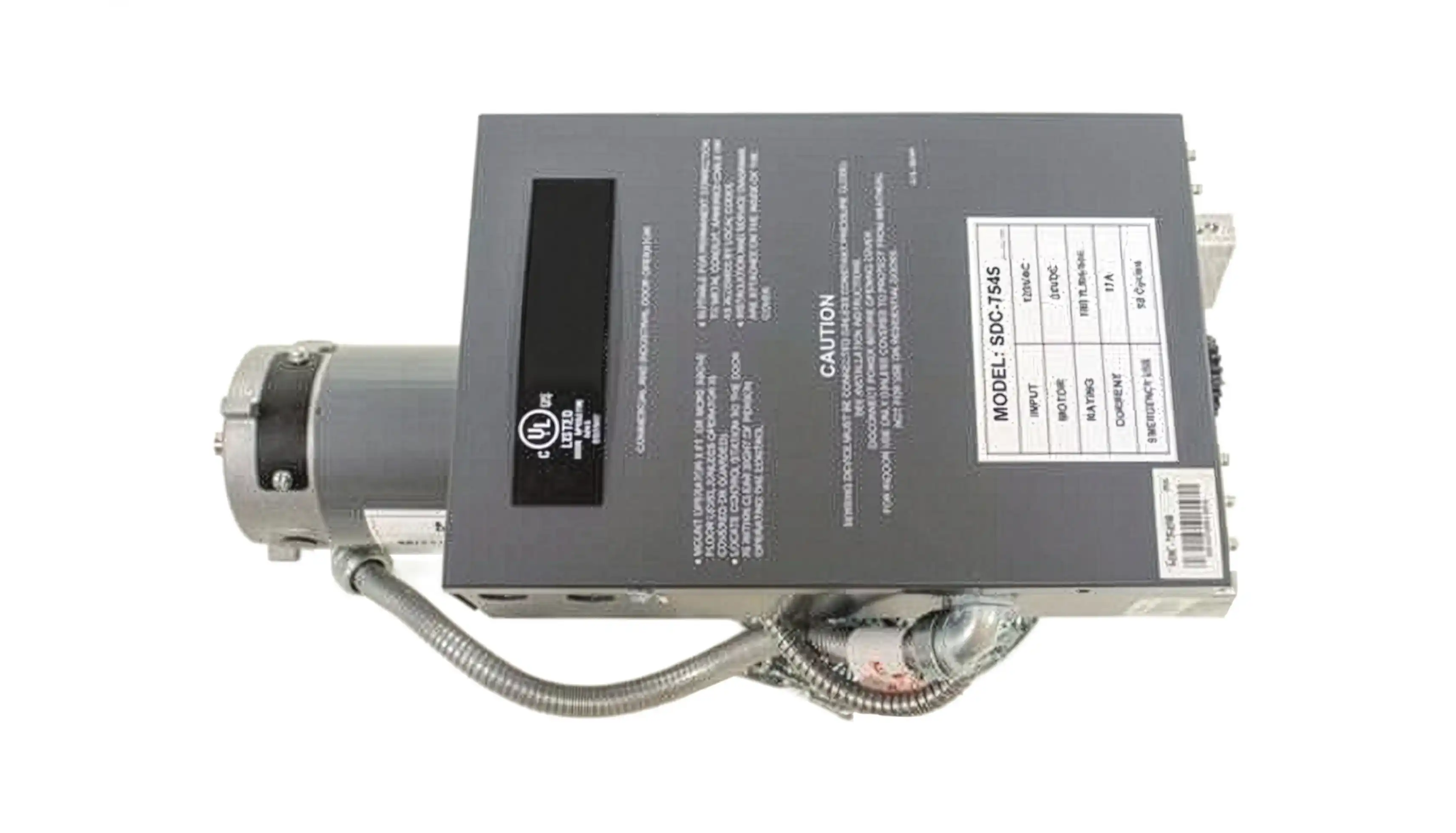

EverGard Operator with Battery Backup
The EverGard Operator is a UL-listed, gear-head DC operator rated for 10 cycles per day. In the event of a power failure, an integrated battery backup provides power for up to 10 cycles over a 48-hour period.
Enter your zip code to find your local dealer
Service Door
CESD10 & CSRD10W
Counter Door
CESC10 & CESC20
Technical Specifications
| Model | SDC | SDCL |
|---|---|---|
| Horsepower | 3/4 HP | 1/2 HP |
| Input Voltage | 120V or 240V* | 120V or 240V* |
| Phase | 1 | 1 |
| Frequency | 50 Hz* / 60 Hz | 50 Hz* / 60 Hz |
| Duty | 10 cycles / hour | 10 cycles / hour |
| Drive Chain | #60 | #50 |
| Motor Mounted Interlock | Not Included | Yes |
| Auxiliary Hand Chain | Yes | Yes |
** Special order - additional lead time will apply
Lock Sensor Type -& The EverGard SDCL operator, features a builtin lock sensor mechanism which can sense when a door is locked and stop it from opening to prevent damaging.
- Totally Enclosed Non-Ventilate (TENV) motor
- AC/DC input powers auto switching
- Rechargeable Battery
- UL 325 2010 & UL 864 compliant
- Non-resettable cycle counter
- Programmable battery self testing – Preset once daily at midnight
- Remote Programmable Control Box comes standard with 10 of cable*
- Speed Governor to prevent free fall
- Programmable CONSTANT or MOMENTARY contact open and close
- Continuous monitoring sensing edge device ELR/IR connecting points
- Selectable “Auto-Open” or “Stay in Position” function if BBU reaches critically low voltage
- Selectable “Auto-Open” or “Stay in Position” funciton at AC power loss
- Abnormal power warning LED with selectable audible alert
- Brake - Maintenance free, solenoid actuated brake that are speed governed to prevent free fall
- Battery Indicator - The remote battery indicator shows battery life. If the batteries reach a low state the indicator will glow red
*The control panel can be installed up to 100 away from the operator as an option, but it may require factory installation.
