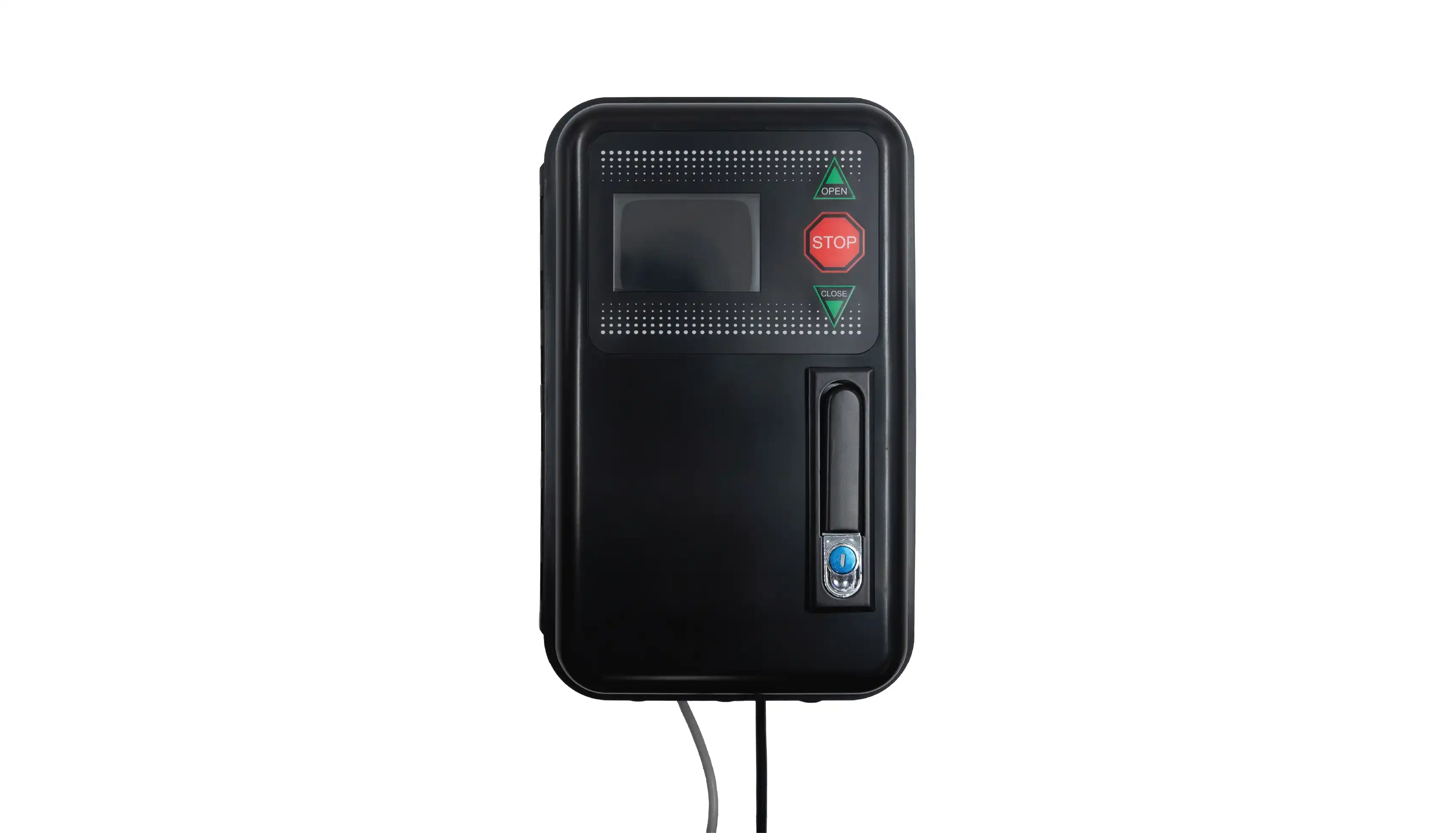

EuroDrive & Apex Pro SmartController™
Engineered for durability and performance, each door is equipped with a rolling door motor and an advanced control system. The solid-state, microprocessor-based APEX Pro SmartController™ is the latest in rolling steel door drive technology and comes pre-configured for your specific door. For a streamlined and easy installation, the APEX Pro SmartController is available across our full range of Extreme rolling products.
Enter your zip code to find your local dealer
Extreme 1024 High-Performance Door
CEPG324 (Straight), CEPG324B (Brick)
Technical Specifications
Voltage: 120 VAC / 1 PH / 60 Hz*, 208/230 VAC / 3 PH / 60 Hz, 208/230 VAC / 1 PH / 60 Hz**, 460 VAC / 3 PH / 60 Hz
*Single phase available up to 2HP.
**120 V AC available for 1HP only.
| Volt | Phase | 1 HP | 1.5 HP | 2 HP | 3 HP | 4 HP | 5 HP |
|---|---|---|---|---|---|---|---|
| 120* | 1 | 14 | - | - | - | - | - |
| 230 | 1 | 7 | 10 | 11.5 | - | - | - |
| 230 | 3 | 4 | 5.6 | 6.4 | 9.6 | 12.8 | 16 |
| 460 | 3 | 2 | 2.8 | 3.2 | 4.8 | 6.4 | 8 |
*120 V AC step up transformer is used in conjunction with a 230 V AC, 1 PH Controller
- Drive System
- Soft Stop and Soft Start Operation
- Advanced logic PCB control with variable frequency drive and graphic LCD screen
- NEMA Rating
- Obstruction Detection
- 24 V dc Outputs
- Auxiliary Outputs
- Cycle Rating: 1,000,000 or 5 Years
