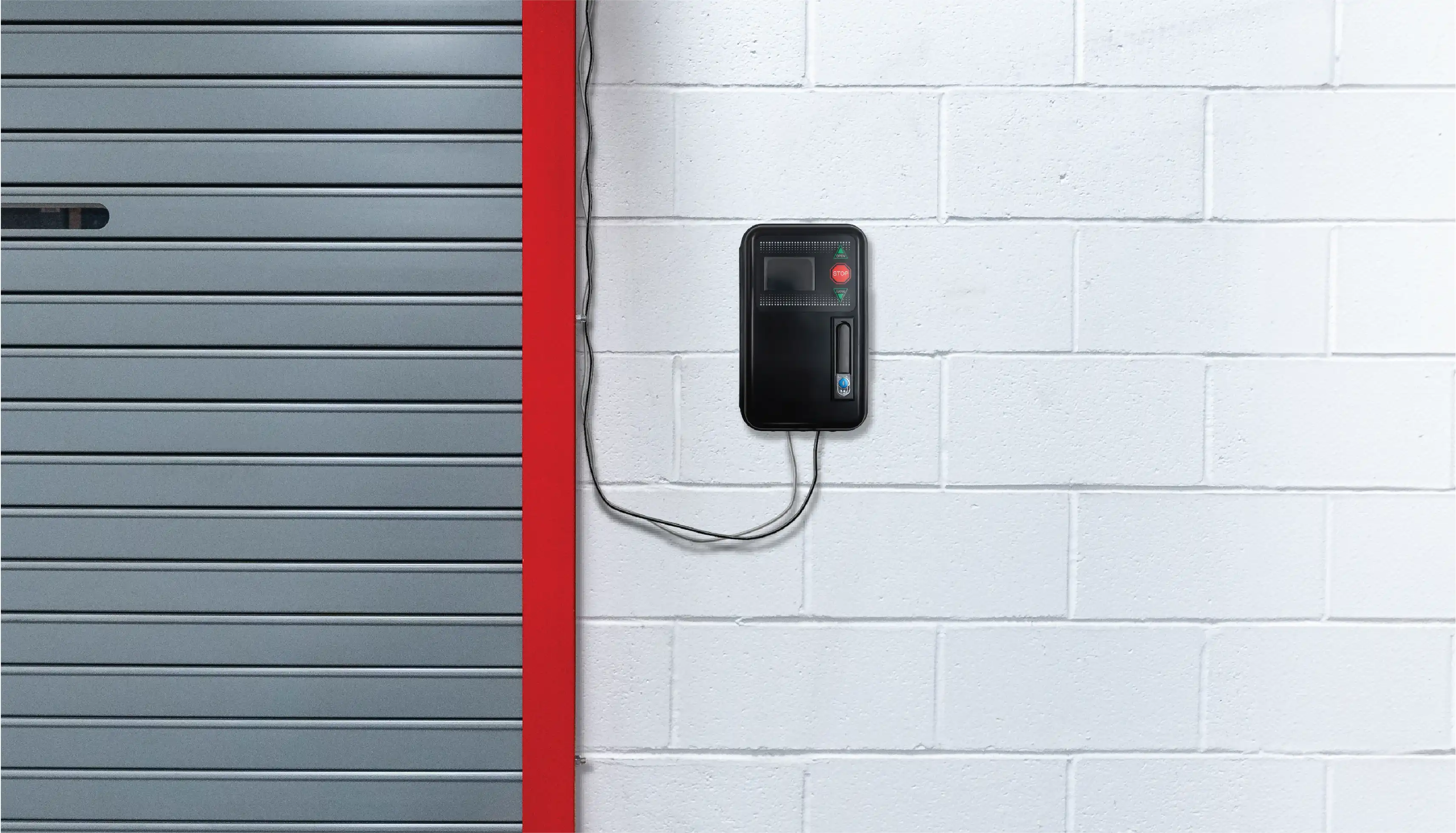

Direct Drive Operator with Apex Pro SmartController™
The Direct Drive Operator with Apex Pro SmartController™ shipped with each door is designed for reliability and longevity when used as a rolling steel door operator. The hollow shaft motor unit features a direct drive gear reduced, emergency hand chain and a high efficiency motor and solenoid brake. The advanced control system is a solid state, microprocessor-based control system.
Enter your zip code to find your local dealer
Extreme® 300 Series High Performance Door and Grille
CEPD300 (Service Door), CEDI300 (Insulated Door), CEPG324 (Straight Grille), CEPG324 (Brick Grille)
Extreme High Performance MicroCoil® Grille - 500 Cycles
CEPG324C & CEPG324CB
Technical Specifications
Voltage: 120 VAC / 1 PH / 60 Hz*, 208/230 VAC / 3 PH / 60 Hz, 208/230 VAC / 1 PH / 60 Hz**, 460 VAC / 3 PH / 60 Hz
*Single phase available up to 2HP. 3HP available as special request.
**120 V AC available for 1HP only.
| Volt | Phase | 1 HP | 1.25 HP | 2 HP | 3.3 HP |
|---|---|---|---|---|---|
| 120* | 1 | 14.6 | - | - | - |
| 230 | 1 | 7.3 | 9.2 | 16.2 | - |
| 230 | 3 | 4.2 | 6.4 | 9.2 | 15 |
| 460 | 3 | 2.5 | 3.8 | 4.6 | 7.5 |
*120 V AC step up transformer is used in conjunction with a 230 V AC, 1 PH Controller
- Drive System
- Soft Stop and Soft Start Operation
- Advanced logic PCB control with variable frequency driv
- NEMA Rating
- Obstruction Detection
- 24 V dc Outputs
- Auxiliary Outputs
- Cycle Rating: 300,000 or 2 Years
