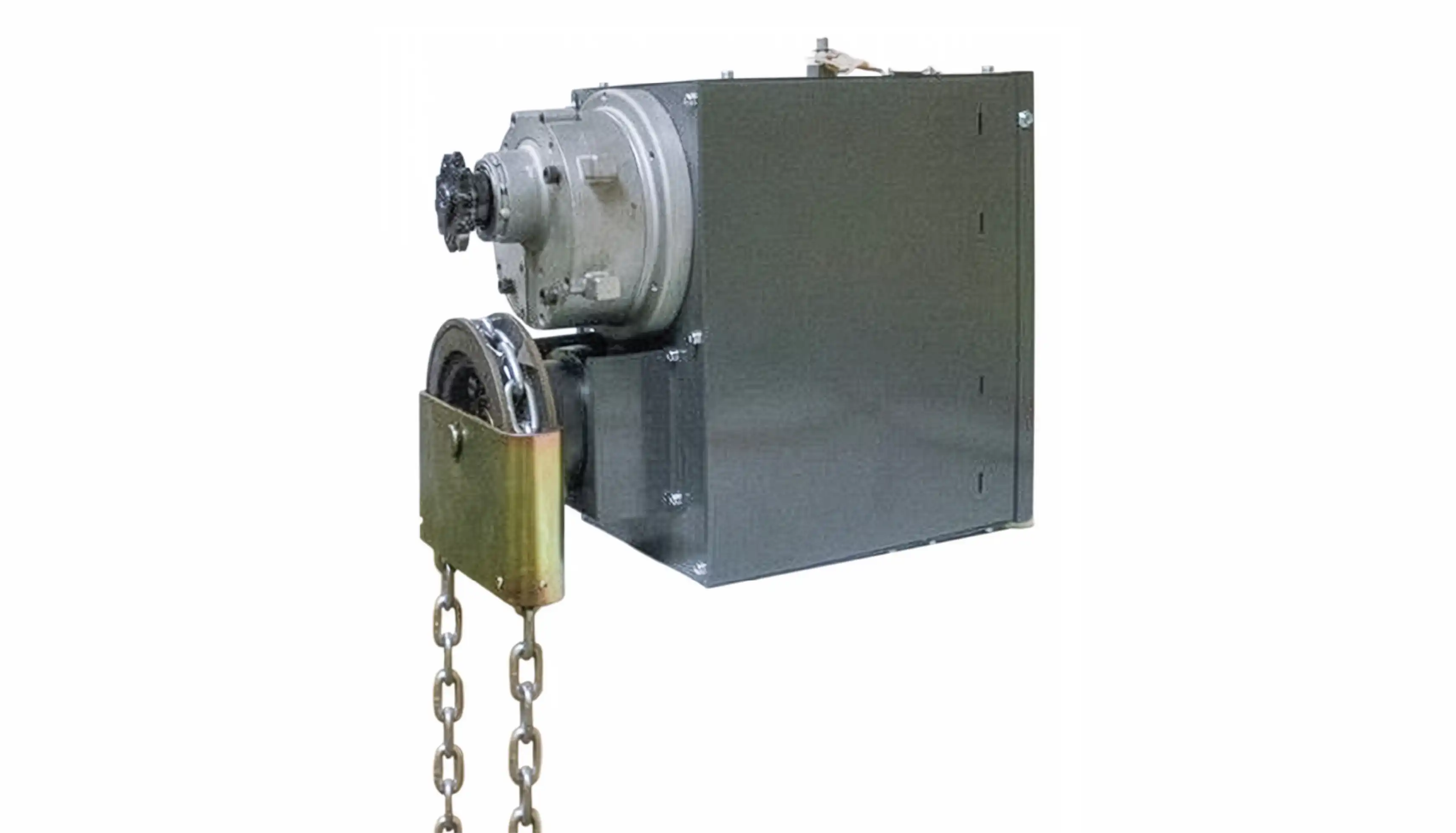

AlarmGard® Chain and Crank Manual Operator
The AlarmGard® Chain and Crank Manual Operator automatically closes fire doors in response to a building alarm, smoke detector activation, or power failure. The door descends at a controlled rate not exceeding 12 inches per second to ensure a safe closure. By eliminating the need for external releasing devices and their associated wiring, this system reduces installation costs and complexity. It is designed to be easily retrofitted to most manufacturers' existing fire doors.
Enter your zip code to find your local dealer
Fire Door
CERD10
Insulated Fire Door
CERD20
Counter Fire Doors
CERC10
Technical Specifications
| Model | Hand Chain | Crank |
|---|---|---|
| Voltage | 115VAC, 24VAC, 24VDC | 115VAC, 24VAC, 24VDC |
| Frequency | 50Hz, 60Hz | 50Hz, 60Hz |
| Standby Current | 0.2A, 1.5A, 0.6A | 0.2A, 1.5A, 0.6A |
| Alarm Current | 0.4A, 1.8A, 1.2A | 0.4A, 1.8A, 1.2A |
24V input can be 24VAC for an approved UL1481 regulated power supply. 18-gauge wiring recommended
Operator Cover
An operator cover will provide extra protection from dirt and offer an aesthetically pleasing option for an application that is not suitable for an exposed operator.
Wall Mounted Key Switch
A wall mounted key switch can be added for ease of drop testing.
- Compact size and light weight
- Closed door detection - will not release door is already closed
- Directly notified by the fire alarm control panels or local detectors
- Fail-safe system
- Eliminates mechanical spring tension loss and complex resetting procedures which allows routine testing to take minutes instead of hours
- Automatically reset to normal operation upon clearing of the alarm signal and/or restoration of power
- Slow and controlled activated closing speed does not exceed 9"-12" per second
- Alarm door warning signal
- 10 second time delay upon activation
- Dramatic cost savings when inspecting and performing drop testing - no manual labor needed
- Supplemental fusible link activation plunger
