Commercial Garage Doors

INDUSTRIAL SERIES

Ribbed Steel Doors

Industrial Series doors feature a variety of standard ribbed, flush and embossed patterns such as stucco and woodgrain. Available in a wide selection of gauges for pro-grade durability, this series is a great choice for high-traffic applications including warehouses, distribution centers and loading docks.

Model Section Thickness Panel Design Ext. Steel Gauge Backer R-value* Max Width** Max Height
520 2" Ribbed Steel 20 Gauge N/A N/A 26'2" 20'0"
520S 2" Minor & Deep Ribs 24 Gauge Pre-painted 30 gauge steel back cover 6.6 26'2" 20'0"

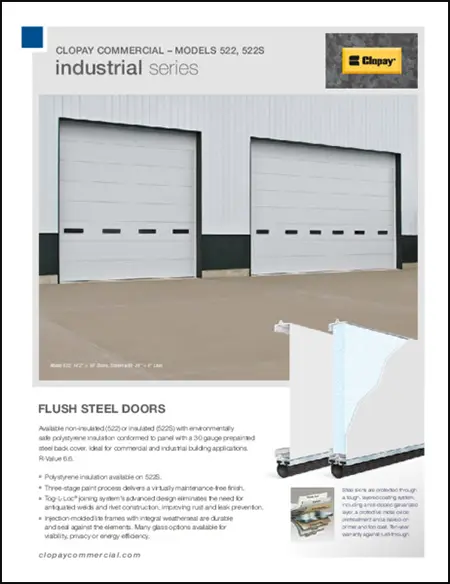

522 2" Flush 20 Gauge N/A 6.6** 24'2" 24'0"
522S 2" Flush 24 Gauge N/A 6.6** 24'2" 24'0"
524 2" Ribbed Steel 24 Gauge N/A N/A 24'2" 20'0"
524V 2" Minor & Deep Ribs 24 Gauge Polyethylene vinyl back cover 6.6 26'2" 20'0"
524S 2" Minor & Deep Ribs 24 Gauge Pre-painted 30 gauge steel back cover 6.6 24'2" 20'0"
525 2" Ribbed Steel 25 Gauge N/A N/A 26'2" 16'0"
525V 2" Minor & Deep Ribs 25 Gauge Polyethylene vinyl back cover 6.6 26'2" 16'0"
525S 2" Minor & Deep Ribs 25 Gauge Pre-painted 30 gauge steel back cover 6.6 20'2" 16'0"
664 2 1/8" Raised Panel Steel 24 Gauge N/A N/A 20'2" 16'0"
664V 2 1/8" Raised Panel 24 Gauge Polyethylene vinyl back cover 6.3 20'2" 16'0"


*Calculated door section R-value is in accordance with DASMA TDS-163

Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options:

  • Windows
  • 24"x6"
  • 24"x12"
  • Full View (pre-painted white or brown or clear anodized)
  • Black frame Window with Rounded Corners

Colors:

  • White - All Models
  • Brown - All Models
  • Tan - 524, 524S, 524V
  • Gray - 524, 524S, 524V
  • Trinar White - 524, 524V, 525S
  • Desert Tan - 664, 664V
  • Hunter Green - 664, 664V
  • Sandtone - 664, 664V
  • Almond - 664, 664V

Performance Options:


  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rated
  • Photo eyes, sensing edges and Operators
  • Sustainable Door Upgrade
  • Header (top) and Jamb Seals

Custom Options:

  • Mullions
  • Breakaway Sections
  • Pass Door

Model - 520/524/525

Panel Design: 2" thick roll formed ribbed steel



Steel Gauge: 20 ga (.034" min) - Model 520, 24 ga (.022" min) - Model 524and 25 ga (.019 min) - Model 525 ribbed steel sections
Joint Design: Tongue and groove
Thickness/Insulation: No insulation
Hardware: 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted white or brown (520/525)
Pre-painted white, brown, tan or gray (524)
Limited Warranty: 10-year finish against rust / one-year material & workmanship

MODEL 520S

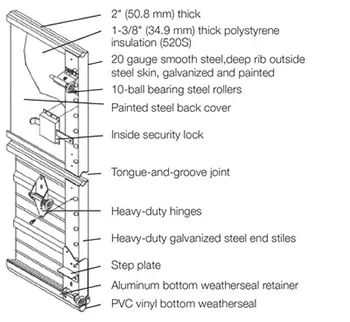

features_520S
Panel Design: 2" thick roll formed stucco embossed ribbed steel
Steel Gauge: 20 gauge (.034" min) for maximum dent resistance
Joint Design: Tongue and groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

MODEL 524V / 524S

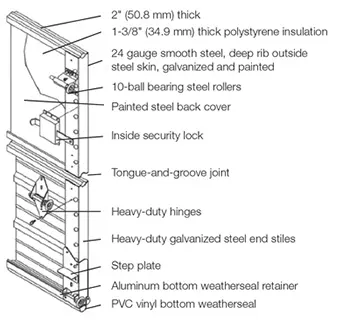

features_524V-524S
Panel Design: 2" thick roll formed stucco embossed steel
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (524V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S)

Thermal Conductivity R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white, brown, tan or gray
Limited Warranty: 10-year paint /one-year material & workmanship

MODEL 525V / 525S

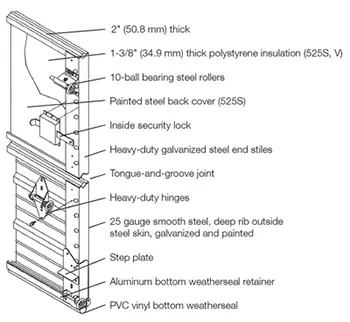

features_525V-525S
Panel Design: 2" thick roll formed smooth steel with combination of deep minor ribs
Steel Gauge: 25 gauge (.019" min)
Joint Design: Tongue and groove
Thickness /Insulation

1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (525V)

1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S)

Thermal Conductivity: R-Value 6.6*
Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors: Pre-painted white or brown
Limited Warranty: 10-year paint / one-year material & workmanship

Model - 664

Panel Design: 1 7/8" thick roll formed steel
Steel Gauge: 24 gauge (.22" min) raised panel door
Joint Design: Tongue and groove
Thickness & Insulation No insulation
Hardware: 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors: Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan.
Limited Warranty: 10-year finish against rust through / one-year material & workmanship

MODEL 664V

652 Cutaway Art
Panel Design: 1-7/8" thick woodgrain embossed raised panel steel
Steel Gauge: 24 gauge (.022" min) ribbed steel sections
Joint Design: Tongue-and-groove
Thickness /Insulation 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover
Thermal Conductivity R-Value 6.3*
Paint System 3-stage paint process delivers maintenance free finish that resists rust perforation
Colors Pre-painted white, brown, tan or gray; Trinar white or beige
Limited Warranty: 10-year paint / one-year material & workmanship

*Calculated garage door section R-value is in accordance with DASMA TDS-163.

ModelsCADBIMShop DrawingSpecificationLiterature(PDF)Instruction Manual(PDF)Warranty
20-Gauge
Model 520 Ribbed, 20 gauge Sustainable Upgrade StandardSupplemental
24-Gauge
Model 524 Ribbed, 24 gauge 524 BrochureSustainable Upgrade StandardSupplemental
Model 664 Raised Panel, 24 gauge  664, 664V BrochureStandardSupplemental
Raised Panel Vinyl Backed Model 664V  664V BrochureStandardSupplemental
Ribbed Steel Backed Model 520S Bottom Breakaway StandardSupplemental
Ribbed Steel Backed Model 524S 524, 524V, 524S BrochureBottom Breakaway StandardSupplemental
Ribbed Vinyl Backed Model 524V Bottom Breakaway StandardSupplemental
25-Gauge
Model 525 Ribbed, 25 gauge 525 BrochureStandardSupplemental
Ribbed Steel Backed Model 525S 525S BrochureStandardSupplemental
Ribbed Vinyl Backed Model 525V 525, 525V, 525S BrochureStandardSupplemental


Click on appropriate icon to download
To use the Spec Wizard, click here

(What is Spec Wizard?)


Track and Jamb Drawings
dwgdxfpdf
Standard Track
Standard Track Follow the Roof Track
Low Headroom–Rear Mount Track
Low Headroom–Front Mount Track
High Lift Track
High Lift Follow-the-Roof Track
Vertical Track
Jamb Details

COMMERCIAL HARDWARE

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

COMMERCIAL TRACK APPLICATIONS

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more

COMMERCIAL TORSION SPRINGS

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details

Collection Series Model/Design Door/Panel Style Construction/Material Colors
Classic Premium 9200 Raised Panel Short Elegant 3 Layers: Steel + 2" Intellicore® Polyurethane Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray, Ultra-Grain® Medium, Cherry and Walnut Finishes
Classic Premium 9201 and 9202 No Panel Flush Contemporary 3 Layers: Steel + 2" Intellicore® Polyurethane Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green**, Gray**
Classic Premium 9203 Raised Panel Long Elegant 3 Layers: Steel + 2" Intellicore® Polyurethane Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray, Ultra-Grain® Medium, Cherry and Walnut Finishes
Classic Premium 9130 Raised Panel Short Elegant 3 Layers: Steel + 1-3/8" Intellicore® Polyurethane Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray
Classic Premium 9131 and 9132 No Panel Flush Contemporary 3 Layers: Steel + 1-3/8" Intellicore® Polyurethane Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green**, Gray**
Classic Premium 9133 Raised Panel Long Elegant 3 Layers: Steel + 1-3/8" Intellicore® Polyurethane Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray
Classic Premium 4300 Raised Panel Short Elegant 3 Layers: Steel + 2" Polystyrene Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray, Ultra-Grain® Medium, Cherry and Walnut Finishes
Classic Premium 4310 Raised Panel Long Elegant 3 Layers: Steel + 2" Polystyrene Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray, Ultra-Grain® Medium, Cherry and Walnut Finishes
Classic Premium 4301 and 4302 No Panel Flush Contemporary 3 Layers: Steel + 2" Polystyrene Insulation + Steel Standard White, Glacier White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Mocha Brown, Black, Hunter Green, Gray
Classic Premium 4050 Raised Panel Short Elegant 3 Layers: Steel + 1-3/8" Polystyrene Insulation + Steel Standard White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Hunter Green, Gray
Classic Premium 4053 Raised Panel Long Elegant 3 Layers: Steel + 1-3/8" Polystyrene Insulation + Steel Standard White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Hunter Green, Gray
Classic Premium 4051 and 4132 No Panel Flush Contemporary 3 Layers: Steel + 1-3/8" Polystyrene Insulation + Steel Standard White, Almond, Desert Tan, Sandtone, Bronze, Chocolate, Hunter Green, Gray
Classic Value Plus 1500, T52S, T42S Raised Panel Short Traditional 2 Layers: Steel + 1-5/16" Polystyrene Insulation Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value Plus 76V, T52L, T42L Raised Panel Long Traditional 2 Layers: Steel + 1-5/16" Polystyrene Insulation Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value Plus T42F No Panel Flush Contemporary 2 Layers: Steel + 1-5/16" Polystyrene Insulation Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value Plus   T51S, 251S, T41S, 241S Raised Panel Short Traditional 2 Layers: Steel + 7/8" Polystyrene Insulation Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value Plus   T51L, T41L, 251L Raised Panel Long Traditional 2 Layers: Steel + 7/8" Polystyrene Insulation Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value Plus   T51F, 251F, T41F, 241F No Panel Flush Contemporary 2 Layers: Steel + 7/8" Polystyrene Insulation Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value  73, 94, T50S, 150S, T40S, 140S Raised Panel Short Traditional 1 Layer: Steel Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value  76, T50L, 150L, T40L, 140L Raised Panel Long Traditional 1 Layer: Steel Standard White, Almond, Desert Tan, Sandtone, Chocolate
Classic Value  T40F No Panel Flush Contemporary 1 Layer: Steel Standard White, Almond, Desert Tan, Sandtone, Chocolate
