GRAND HARBOR® collection

Steel and composite carriage house garage doors with or without insulation

When budget is the deciding factor, this low-maintenance, insulation-optional steel frame carriage house style garage door combines clean lines and classic charm to provide a popular style at a great value.

  • Smooth composite overlays are adhered to a flush 24 gauge steel door.
  • 2 or 1-layer steel carriage house doors. (See construction tab)
  • Optional 1-5/8" vinyl-backed polystyrene insulation improves energy efficiency. 6.3 R-value.
  • Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer and baked-on primer and top coat.
  • Four factory finish paint colors.
  • Glass options are clear, obscure, and acrylic. (See design options)
  • Attractive beveled edge clip-in window grilles are removable for easy cleaning.
  • Comes complete with spade lift handles and step plates. Additional decorative hardware options available. (See design options tab)
  • WINDCODE® product available (Click here for details)

Calculated door section R-value is in accordance with DASMA TDS-163.

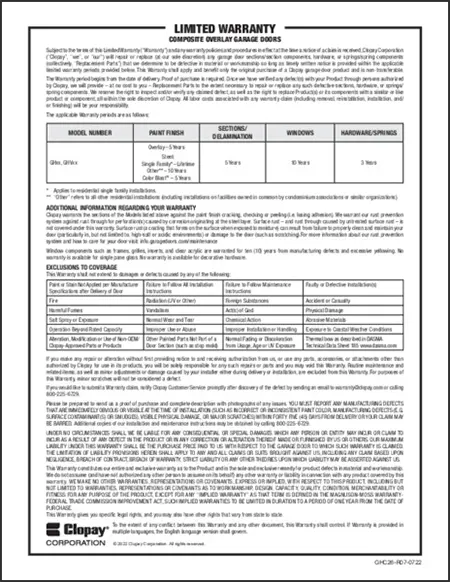

Paint Limited Life Warranty10 year window and overlay warranty5 year warranty overlay delamanation3 year limited hardware warranty

Lift Master Elite Series LIFTMASTER® ELITE SERIES™
Clopay recommends the LiftMaster® Elite Series opener for these garage doors.

Door Designs


SERIES 1

DESIGN11
DESIGN12
DESIGN13

SERIES 2

DESIGN21
DESIGN22

SERIES 3

DESIGN31
DESIGN36

SERIES 4

DESIGN41

Top Sections


SOLID TOP SECTIONS

TOP11
TOP12
TOP13
ARCH1

WINDOW DESIGNS

PLAIN SHORT
SQ22
PLAIN LONG
REC14
SQ24
ARCH1
GRLA1
XA24*
XG14*
XG24*
WROUGHT IRON SHORT
WROUGHT IRON LONG
*Faux windows.

Colors


STANDARD WHITE
ALMOND
DESERT TAN
SANDTONE

Hardware Designs

Clavos

DIAMOND CLAVOS
ROUND CLAVOS
Handles

SPADE LIFT HANDLES
(standard)
ESCUTCHEON PLATE(S)
TWISTED "T" HANDLE
Hinges

SPADE STRAP HINGE
Plates

SPADE STEP PLATE
(standard)

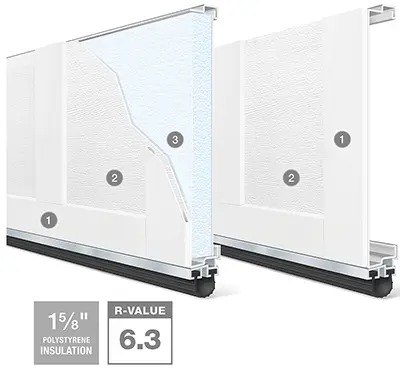

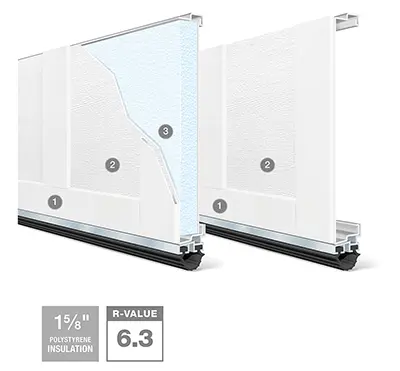

  1. Smooth composite overlay
  2. Steel
  3. 1 5/8" polystyrene insulation (optional)
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • Grilles are removable for easy cleaning.
  • Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System - Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.

Safe-T Bracket  Paint System Rust Prevention
       Safe T-Bracket®          Rust-Prevention System

Door sample is shown in white.

grand harbor garage door construction
