Steel Garage Doors Gallery Collection

GALLERY® collection

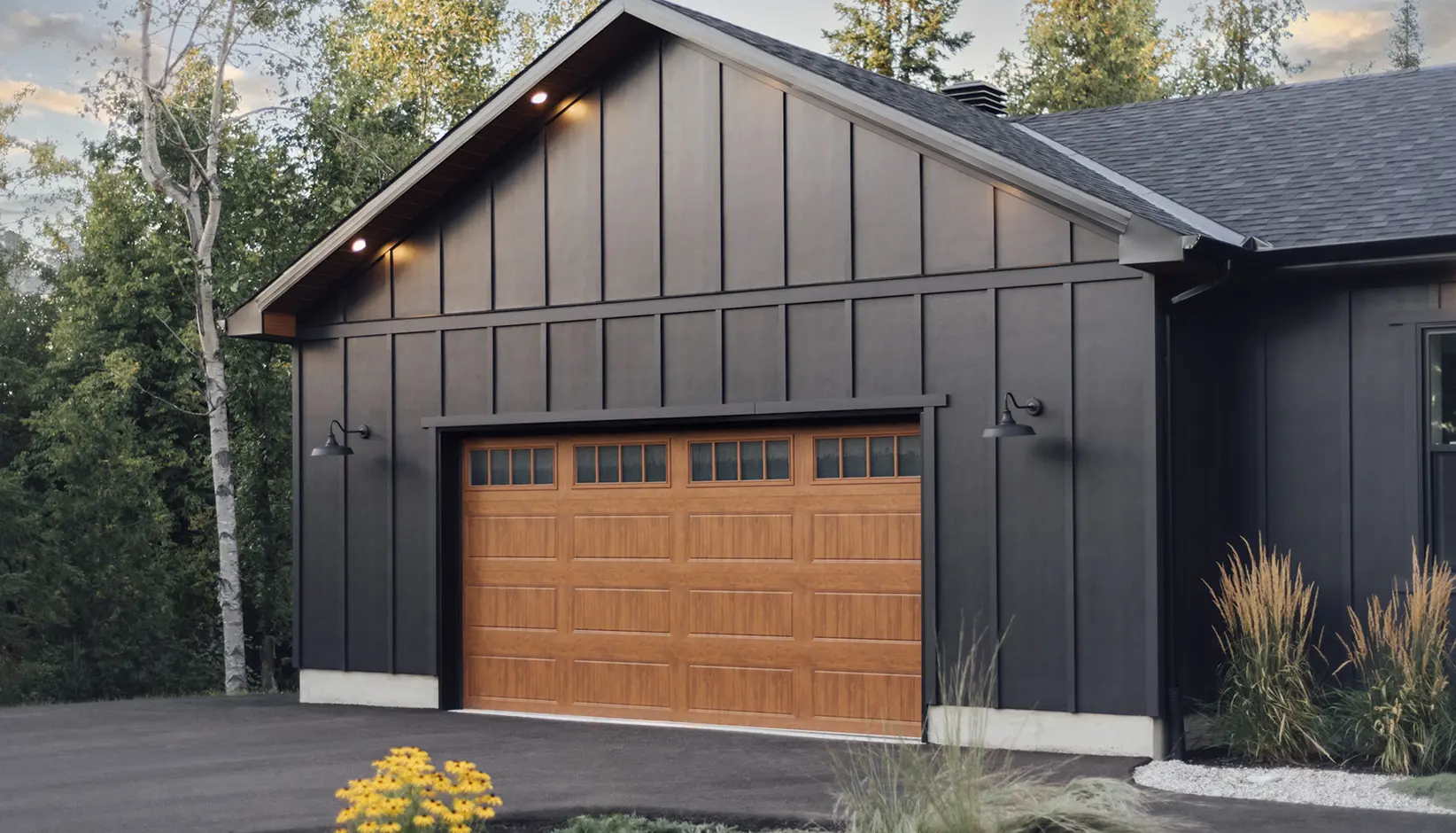

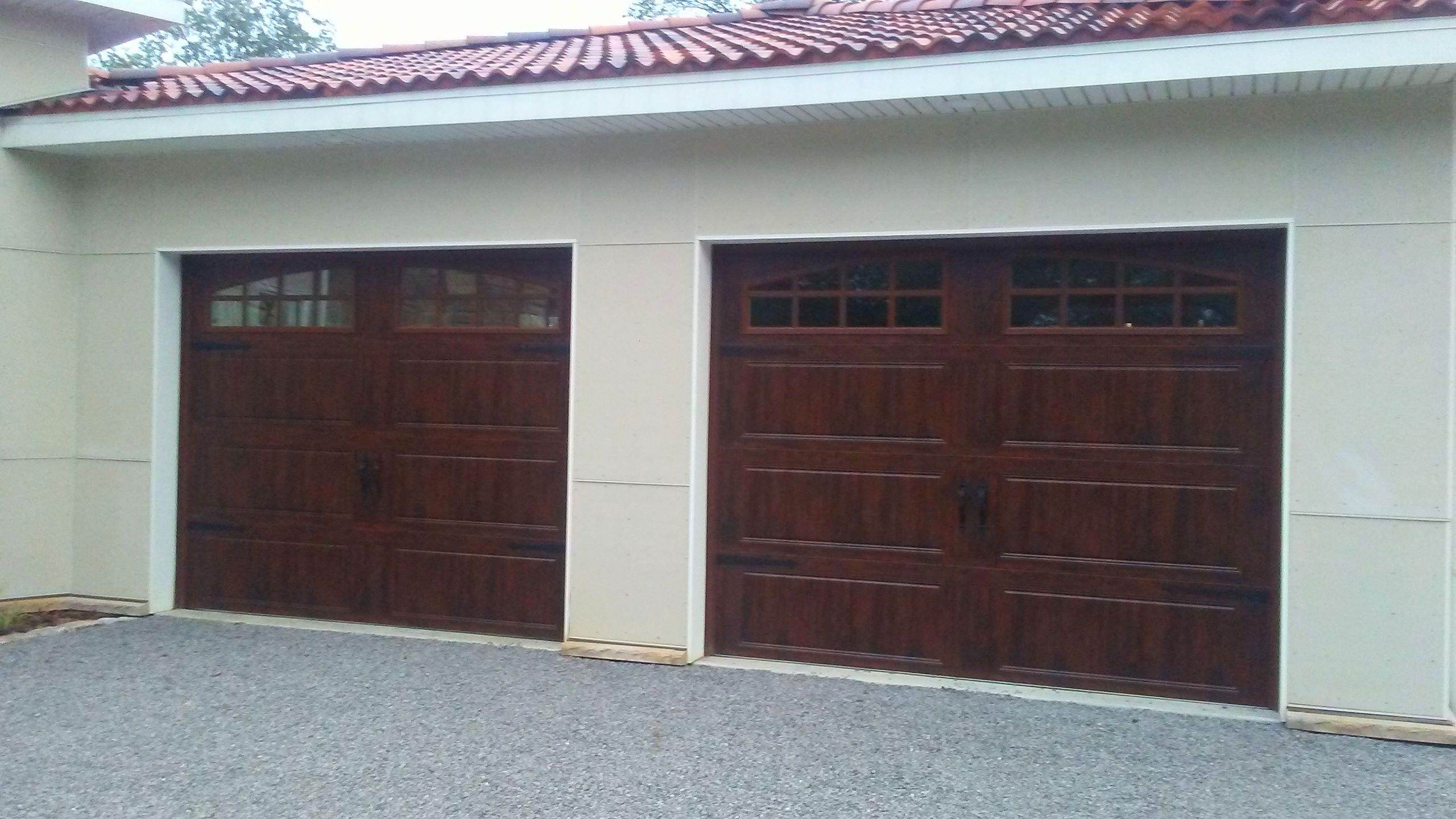

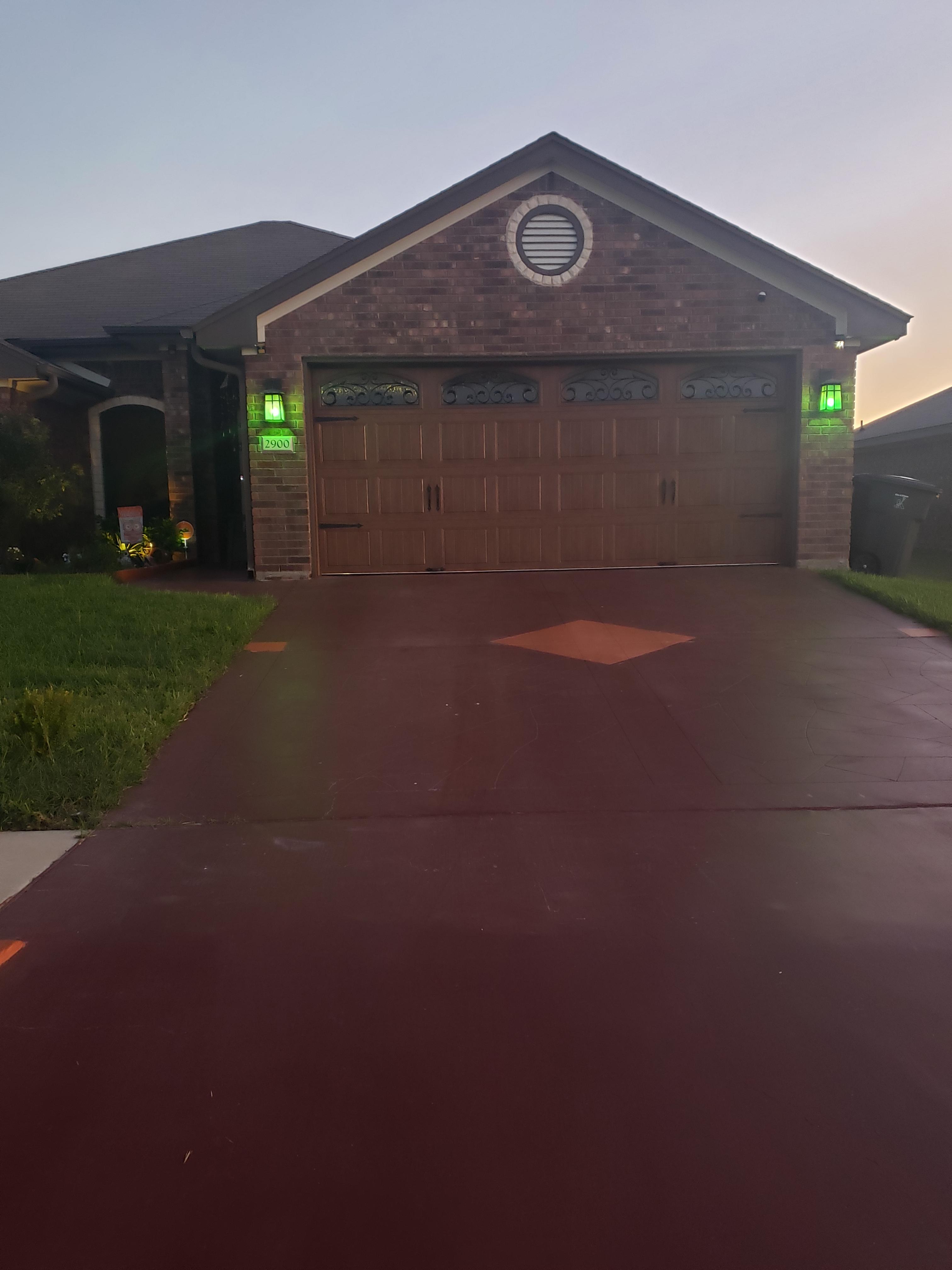

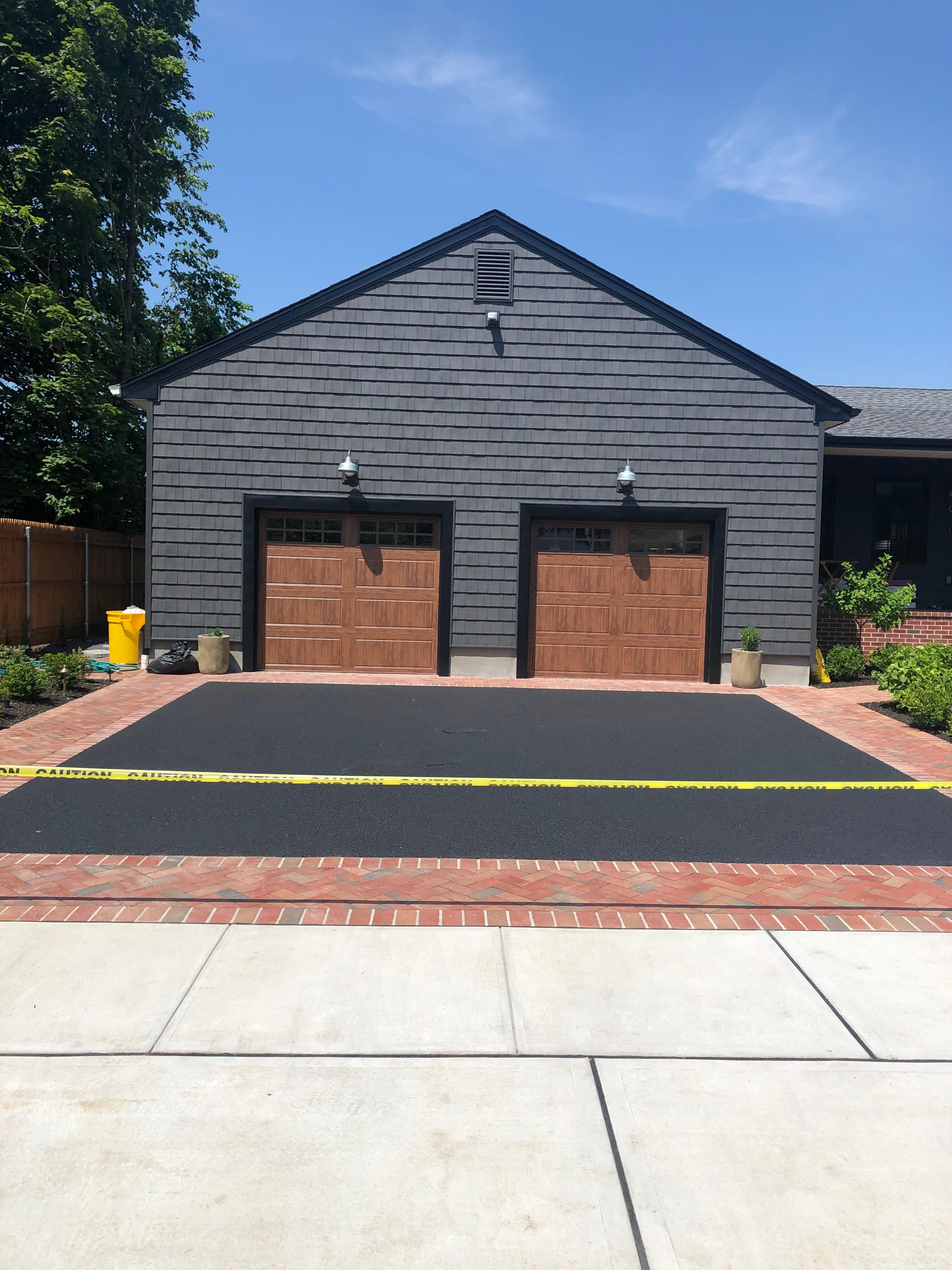

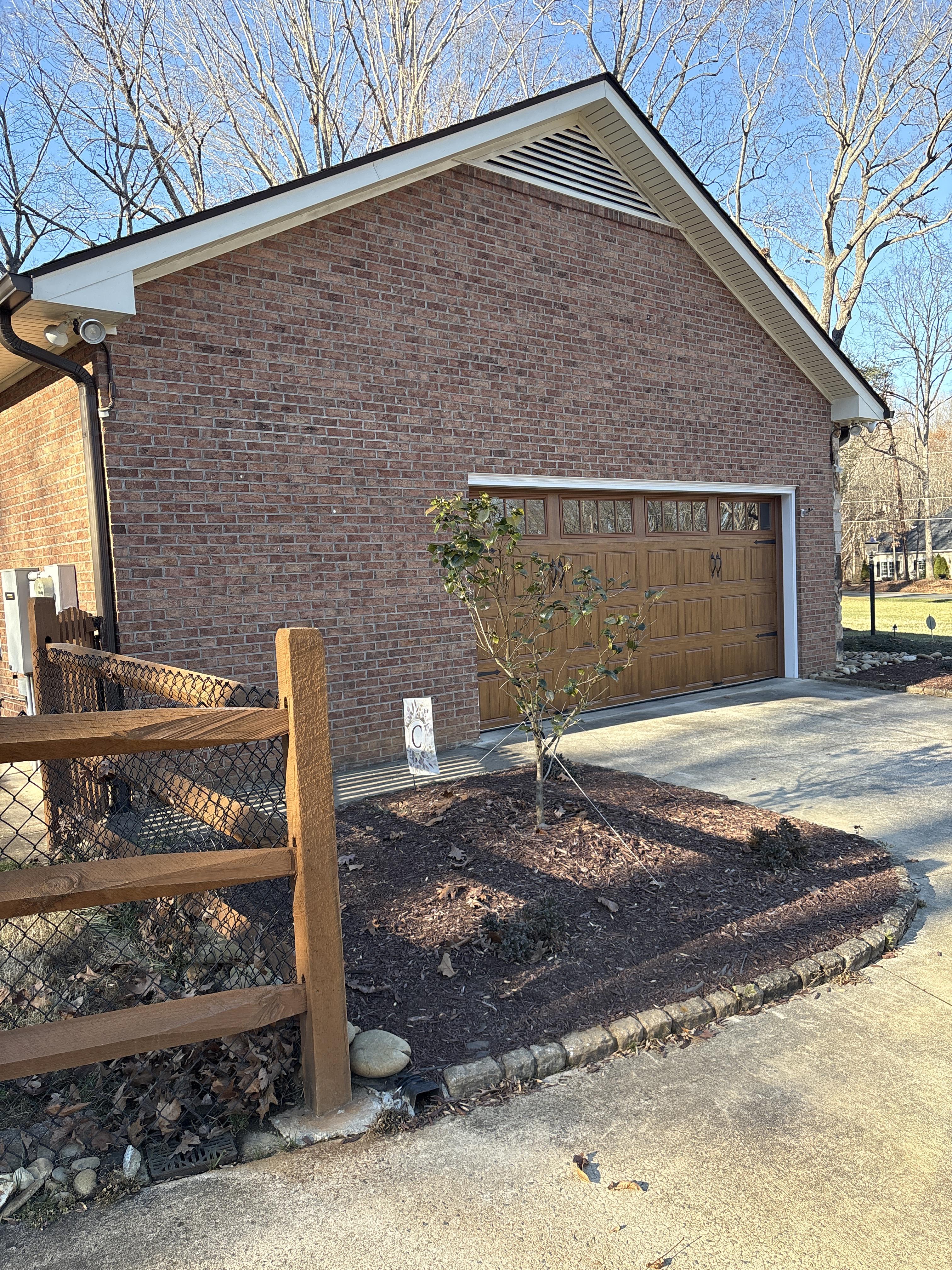

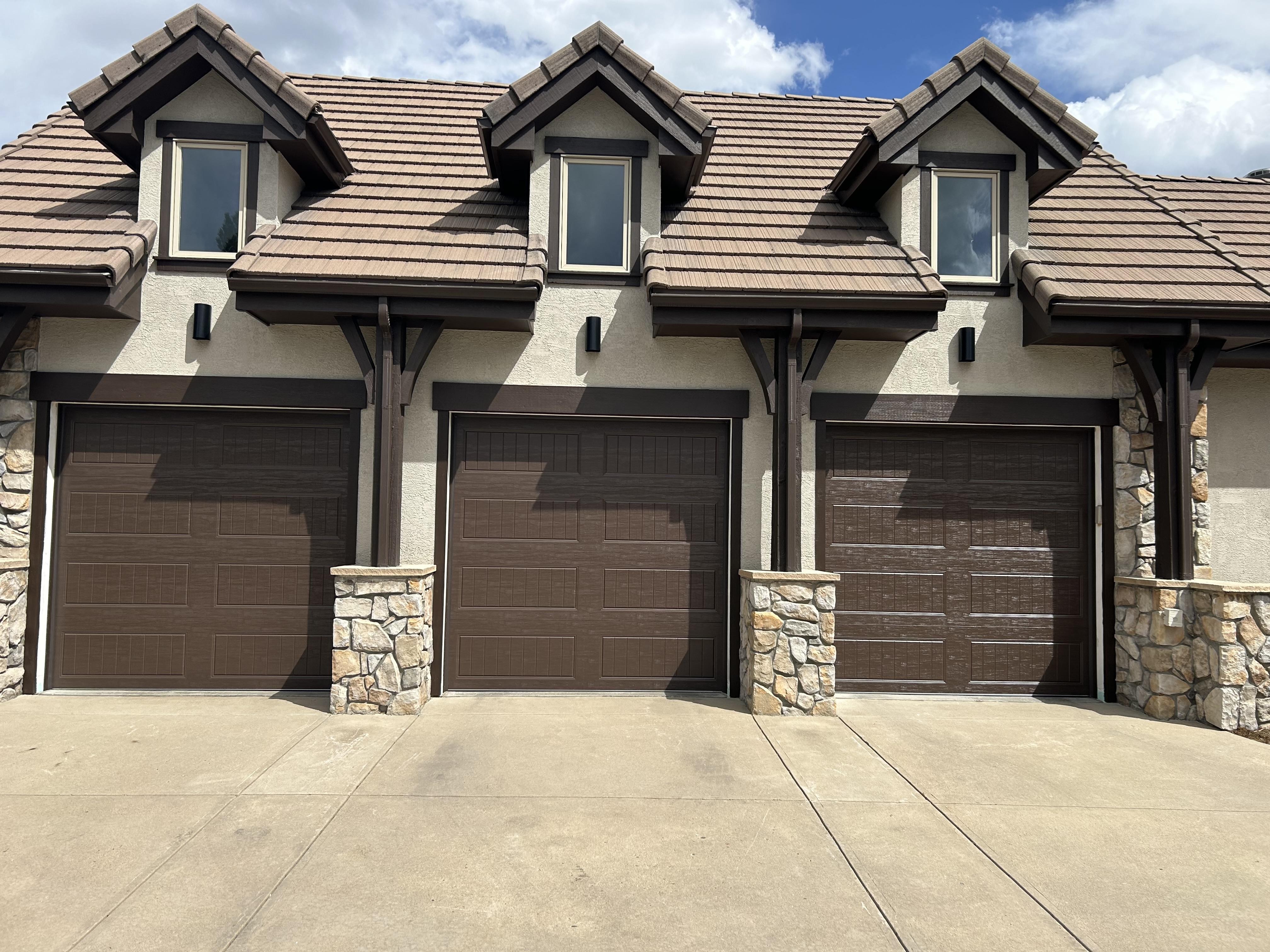

Grooved panel steel carriage house garage doors with or without insulation

We’ve taken the iconic raised panel steel garage door and given it a vintage feel by adding a grooved panel design, optional decorative windows and wrought iron hardware with many unique color choices including Ultra-Grain®, Clopay’s exclusive faux woodgrain paint finish.

  • Grooved panel steel carriage house garage doors.
  • 3, 2 or 1-layer steel grooved panel doors. (See construction tab)
  • 2" or 1-3/8" Intellicore® polyurethane, 2" or 1-3/8" polystyrene or 1-5/16" vinyl backed polystyrene insulation available. Insulated door R-values from 6.3 to 18.4.
  • Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer and baked-on primer and top coat.
  • 12 factory finish paint colors available. (See design options tab)

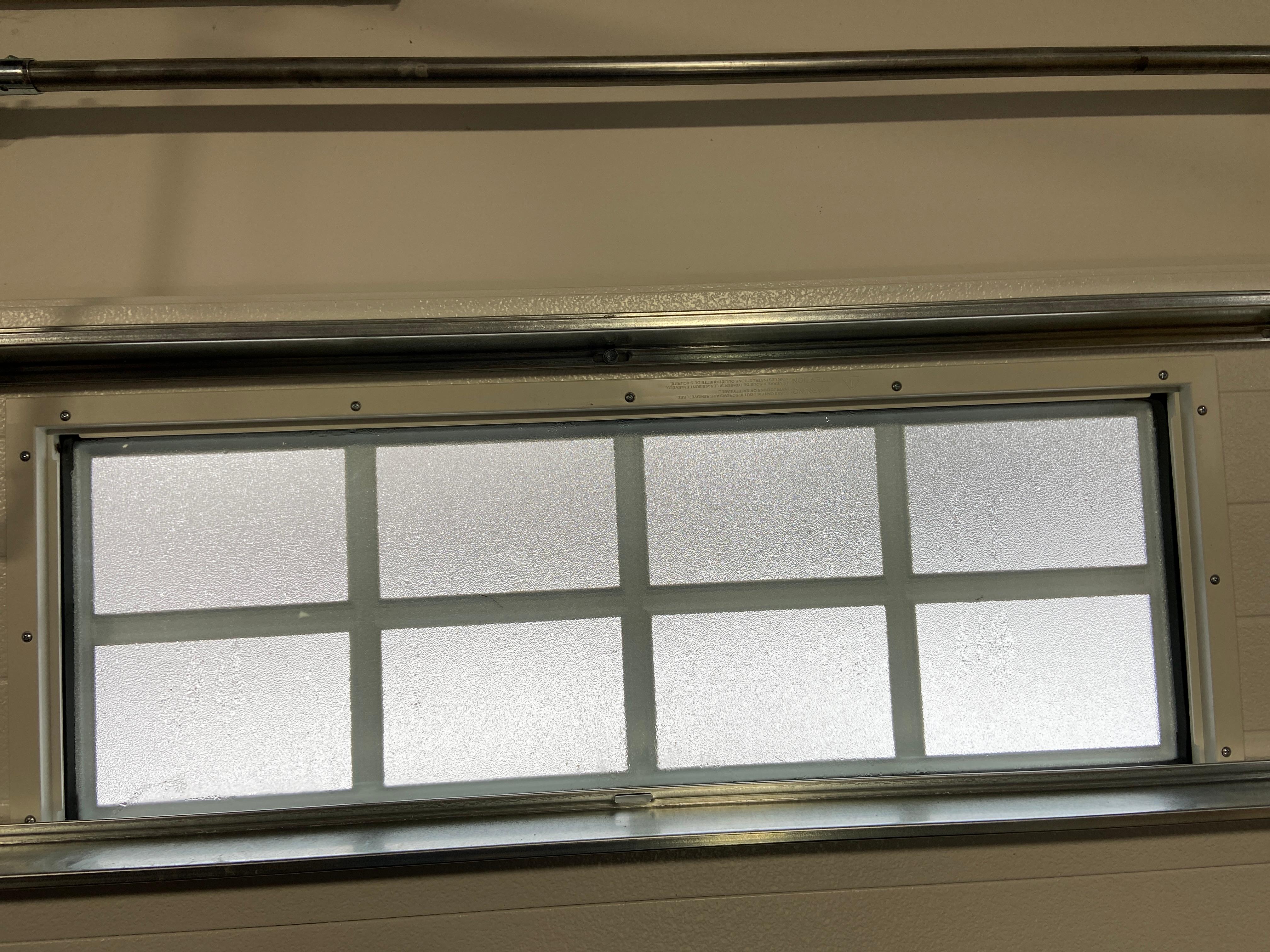

  • Many glass options available including insulated options. (See design options tab)
  • Grilles are removable for easy cleaning.
  • Comes complete with spade lift handles and step plates. Additional decorative hardware options available. (See design options tab)
  • WINDCODE® product available. (Click for details)

  • Calculated garage door section R-value is in
     accordance with DASMA TDS-163.


Paint Limited Life Warrantywindow 10 year warranty3 year limited hardware warranty
(For 3 Layer and 24 gauge doors)

15 year paint system warrantywindow 10 year warranty3 year limited hardware warranty
(For 25 gauge doors)

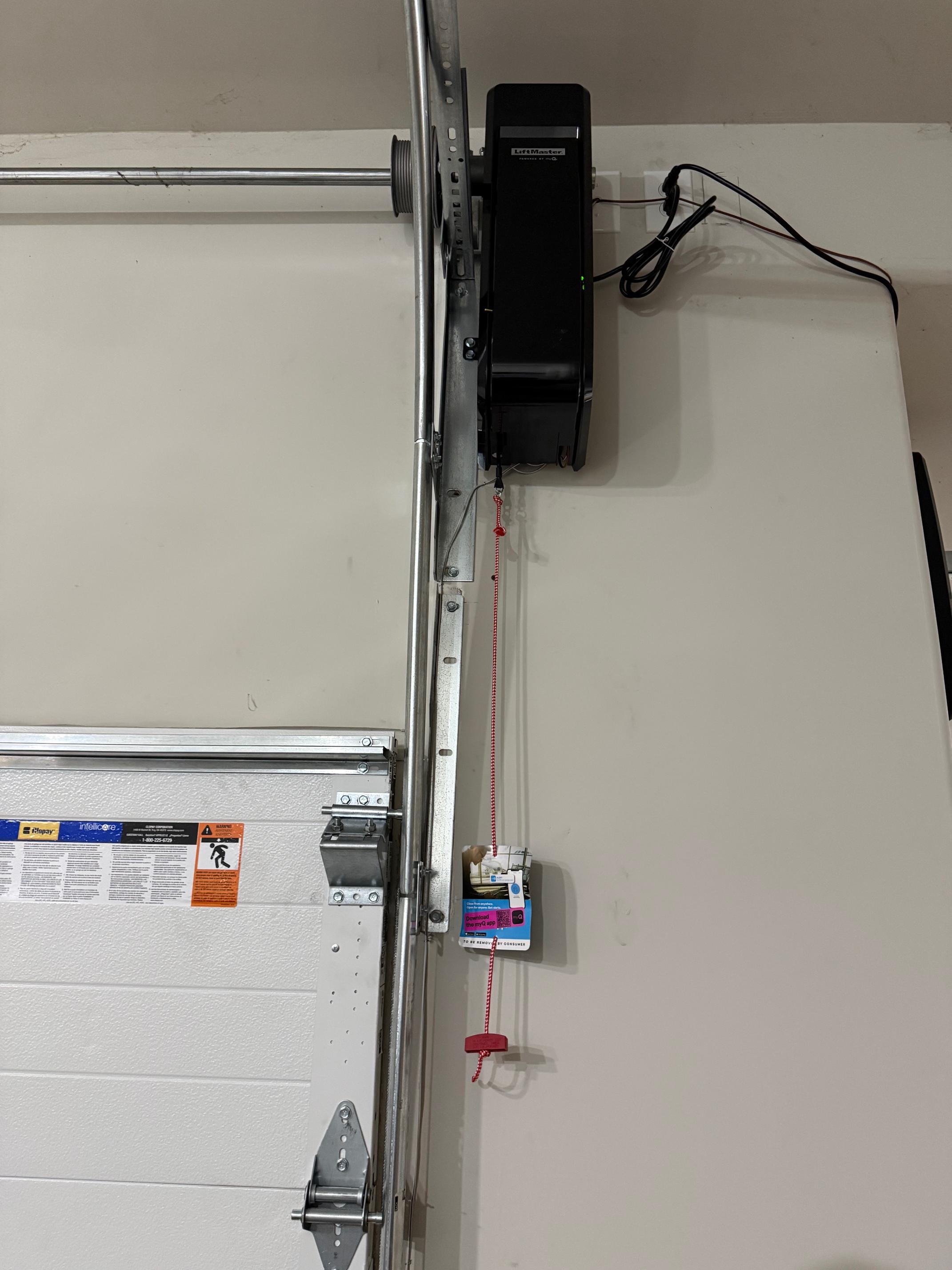

Lift Master Elite Series LIFTMASTER® ELITE SERIES™
Clopay recommends the LiftMaster® Elite Series opener for these garage doors.

Door Designs



SHORT PANEL
LONG PANEL

Top Sections


SOLID TOP SECTIONS

SHORT SOLID
LONG SOLID

TOP SECTIONS WITH WINDOWS

PLAIN SHORT
SHORT WITH RECTANGULAR GRILLES
SHORT WITH SQUARE GRILLES
PLAIN LONG
LONG WITH RECTANGULAR GRILLES
LONG WITH SQUARE GRILLES
ARCH1 PLAIN
ARCH1 WITH VERTICAL GRILLES
ARCH1 WITH GRILLES
ARCH2 PLAIN
ARCH2 WITH GRILLES
ARCH2 WITH VERTICAL GRILLES
ASHFORD SHORT
ASHFORD LONG
KRISTIN SHORT
KRISTIN LONG
TRENTON SHORT
TRENTON LONG
CLAYTON SHORT
CLAYTON LONG

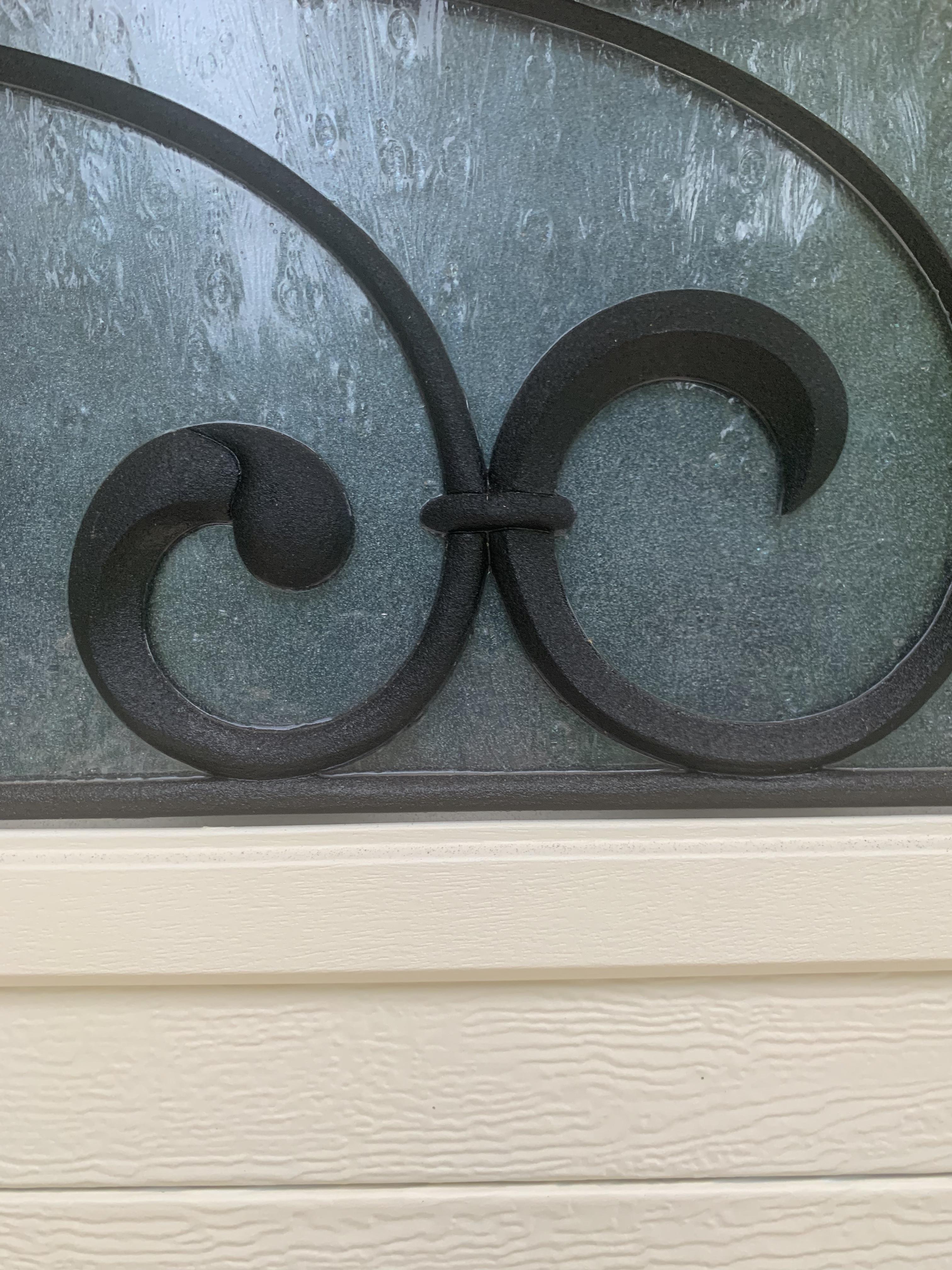

WROUGHT IRON SHORT*
WROUGHT IRON LONG*

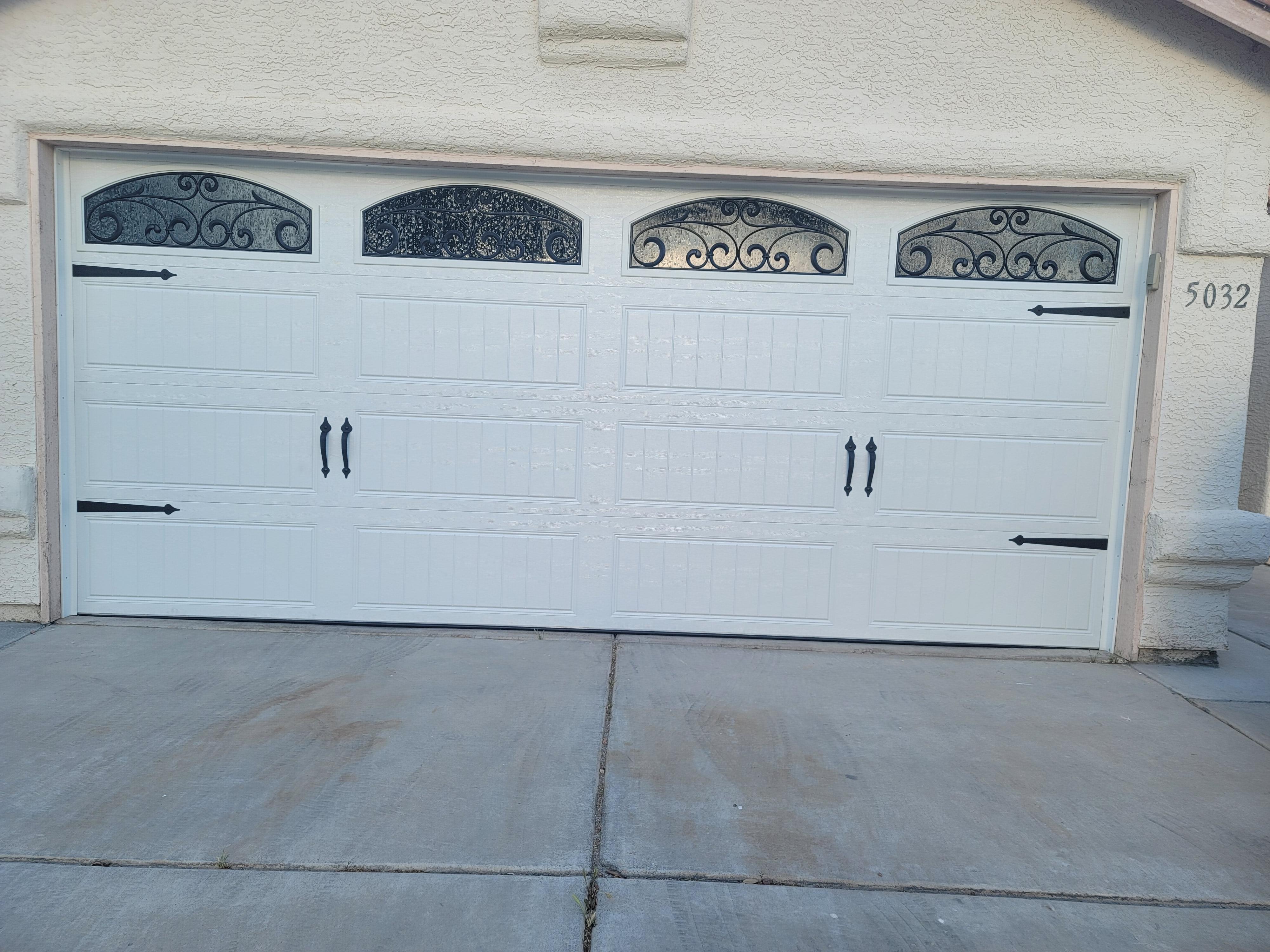

WROUGHT IRON ARCH*
*Acrylic window designs.

Colors


STANDARD WHITE
GLACIER WHITE*
ALMOND
DESERT TAN
SANDTONE
BRONZE*
CHOCOLATE
MOCHA BROWN*
BLACK*
ULTRA-GRAIN DARK FINISH*
ULTRA-GRAIN MEDIUM FINISH*
ULTRA-GRAIN WALNUT FINISH*

*Available on select models.
ColorBlast available (Click for details)

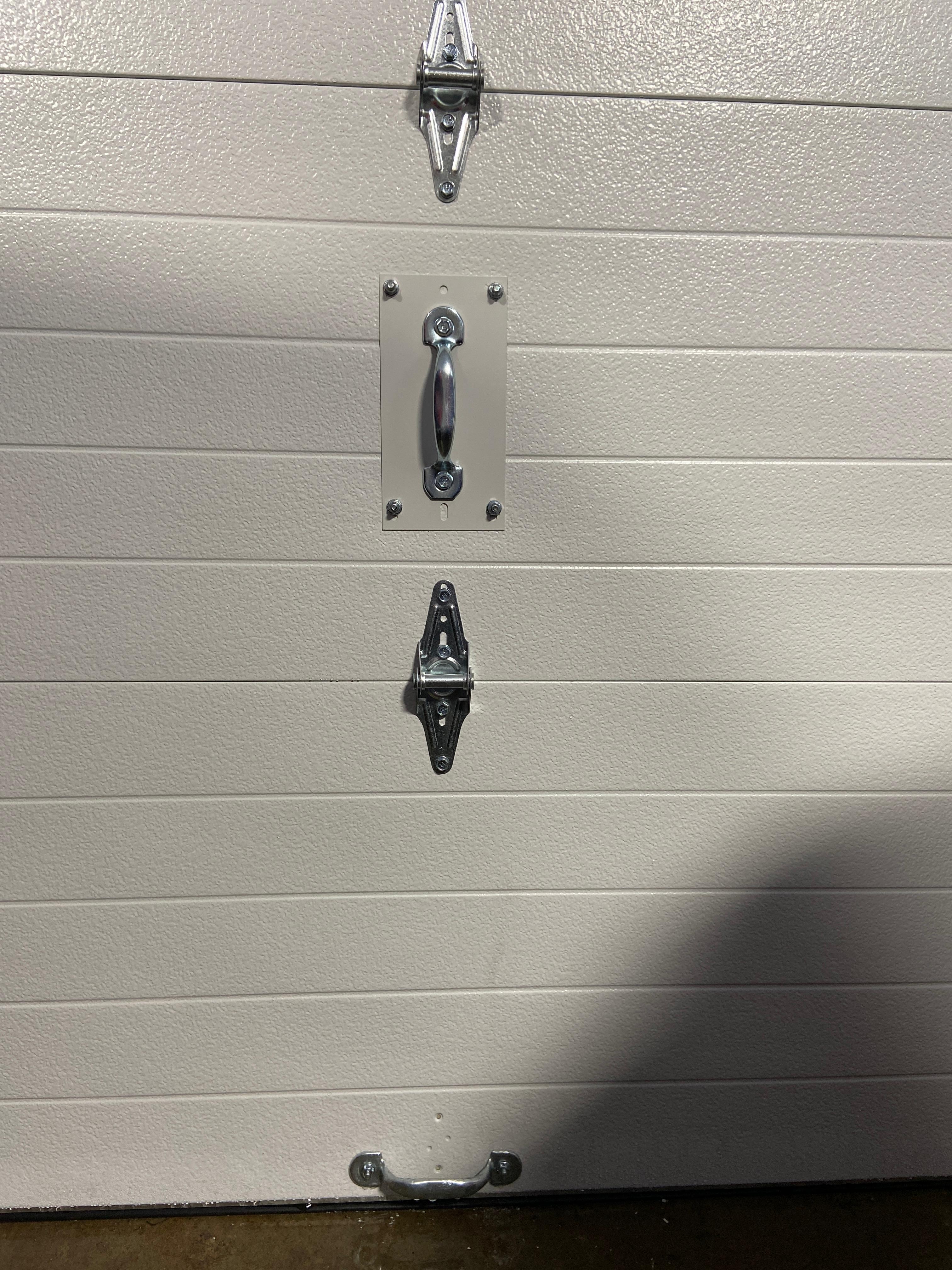

Hardware Designs

Clavos

DIAMOND CLAVOS
ROUND CLAVOS
Handles

SPADE LIFT HANDLES
(standard)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES

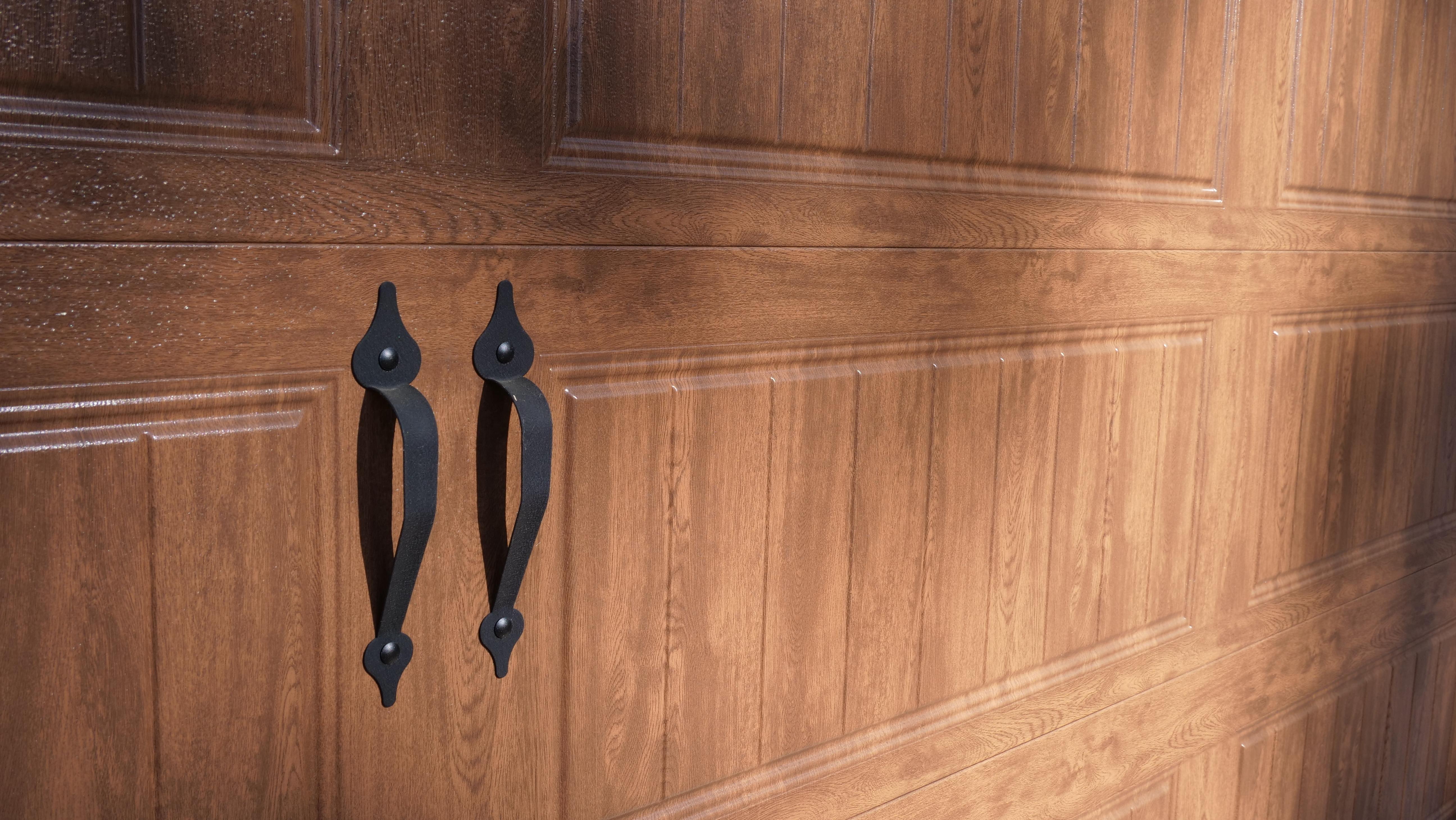

OLDE DOOR PULL HANDLES
GATE LATCH HANDLES
ESCUTCHEON PLATE(S)
TWISTED "T" HANDLE
TWISTED "L" HANDLES
Hinges

SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
Plates

Spear Step Plate
SPADE STEP PLATE
(standard)
COLONIAL STEP PLATE
  1. Available in 3-layer, 2-layer or 1-layer construction
  2. 2" or 1-3/8" Intellicore® polyurethane, 2" or 1-3/8" polystyrene or 1-5/16" vinyl backed polystyrene insulation available.  Insulated door R-values from 6.3 to 18.4
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • Window grilles are removable for easy cleaning.
  • Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System - Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.

Safe-T Bracket  Paint System Rust Prevention
       Safe T-Bracket®          Rust-Prevention System

Door sample shown in Standard White.

intellicoreheader
Warmer. Quieter. Stronger.
Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency and durability. (Click for details)
