Coachman Carriage House Garage Doors

COACHMAN® collection

Authentic looking insulated steel and composite carriage house garage doors

The perfect blend of beauty and practicality, these carriage house doors look like wood, but they are actually crafted of multiple layers of durable, low-maintenance steel and insulation topped with a woodgrain textured composite overlay.

  • Coachman doors have the charming appearance of an old-fashioned swing-out door, but offer the built-in convenience of modern upward operation.
  • 4-layer insulated steel carriage house doors. (See construction tab)
  • 2" Intellicore® polyurethane, 2" polystyrene or 1-3/8" polystyrene insulation. R-values from 6.5 to 18.4.
  • Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer and baked-on primer and top coat.
  • Four factory finish paint and overlay colors. Overlay and base colors can be mixed to achieve desired look.
  • Four factory finish paint colors.
  • Many glass options available including clear, frosted, seeded and insulated.
    (See design options tab for complete offering)
  • Attractive beveled edge clip-in window grilles are removable for easy cleaning.
  • Comes complete with spade lift handles and step plates. Additional decorative hardware options available. (See design options tab)
  • WINDCODE® product available. (Click for details)

  • Calculated garage door section R-value is in
     accordance with DASMA TDS-163.

Paint Limited Life Warranty10 year window and overlay warranty5 year warranty overlay delamanation5 year hardware warranty

Lift Master Elite Series LIFTMASTER® ELITE SERIES™
Clopay recommends the LiftMaster® Elite Series opener for these garage doors.

Door Designs


SERIES 1

DESIGN 11
DESIGN 12
DESIGN 13

SERIES 2

DESIGN 21
DESIGN 22
DESIGN 23

SERIES 3

DESIGN 31
DESIGN 32
DESIGN 33
DESIGN 34
DESIGN 35
DESIGN 36

SERIES 4

DESIGN 41
DESIGN 42
DESIGN 43

Top Sections


SOLID TOP SECTIONS

TOP11
TOP12
TOP13
ARCH1

WINDOW DESIGNS

REC11
REC13
REC14
ARCH1
ARCH3
ARCH4
SQ23
SQ24

Colors


STANDARD WHITE
ALMOND
DESERT TAN
SANDTONE
Desert Tan Overlay / Desert Tan Base
Desert Tan Overlay / Sandtone Base
Desert Tan Overlay / White Base
Sandtone Overlay / Almond Base
Sandtone Overlay / Desert Tan Base
Sandtone Overlay / Sandtone Base
Sandtone Overlay / White Base
White Overlay / Almond Base
Almond Overlay / White Base
WHITE OVERLAY / WHITE BASE
Almond Overlay / Almond Base
Almond Overlay / Desert Tan Base
Almond Overlay / Sandtone Base
Desert Tan Overlay / Almond Base

Hardware Designs

Clavos

DIAMOND CLAVOS
ROUND CLAVOS
Handles

SPADE LIFT HANDLES
(standard)
SPEAR LIFT HANDLES
COLONIAL LIFT HANDLES
FLEUR DE LIS HANDLES
DECORATIVE LIFT HANDLES
OLDE DOOR PULL HANDLES
GATE LATCH HANDLES
RING KNOCKERS WITH PLATE
LION'S HEAD DOOR KNOCKER
RING DOOR KNOCKERS
ESCUTCHEON PLATE(S)
TWISTED "L" HANDLES
Hinges

SPADE STRAP HINGE
SPEAR STRAP HINGE
COLONIAL STRAP HINGE
FLEUR DE LIS STRAP HINGE
Plates

SPADE STEP PLATE
(standard)
SPEAR STEP PLATE
COLONIAL STEP PLATE
FLEUR DE LIS STEP PLATE

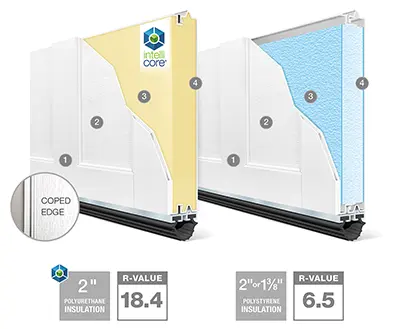

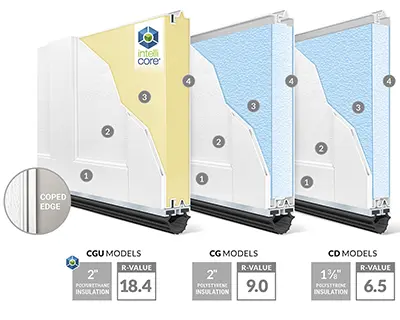

  1. Composite overlay
  2. Steel
  3. Insulation with thermal break (2" Intellicore® polyurethane, 2" polystyrene or 1-3/8" polystyrene insulation. R-values from 6.5 to 18.4)
  4. Steel

  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • Grilles are removable for easy cleaning.
  • Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.

Safe-T Bracket
       Safe-T Bracket®

Door sample shown in Standard White.

coachman collection construction
